Everything posted by spottersim
-
Managed descent speed range
Next waypoint constraint: MAX 250kt/+FL170 GD speed ~232kt In managed descent, the aircraft seemed to glide better than the MCDU had predicted. This resulted in the aircraft approaching the upper end of the target speed range (+20kt). It then reached this limit and subsequently deviated above the profile. This behavior is correct, but I think the assumed vs current drag needs refinements. Approaching the aforementioned waypoint, the target speed was set to 250kt, with a range of GD-250kt. There was no additional buffer above 250kt. Is this correct?
-
GEN inop
When selecting a failed engine generator in the EFB, the aircraft does not sense the GEN switch, as required by the ECAM procedure.
-
Curved contrails
Reproducible in the A343 as well.

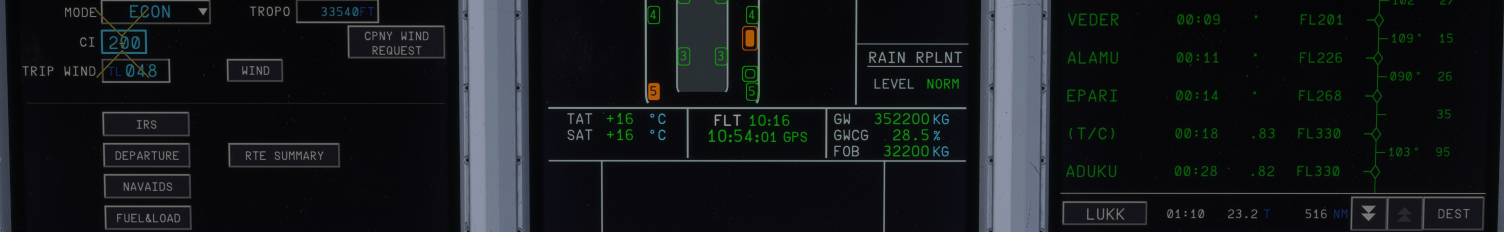

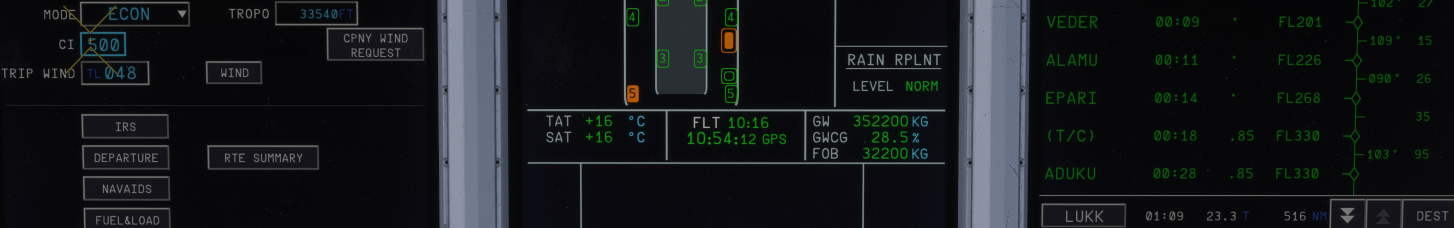

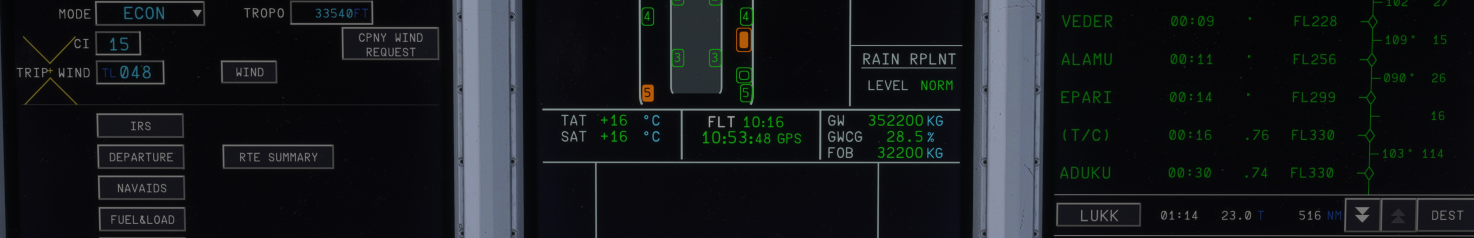

- Cost index / speed has NO effect on fuel usage whatsoever
- FMGCS Problem so far
- FMGCS Problem so far
-
Step climb size
Thanks. It would, however, be a 100 ft descent, 900ft, or 1900ft climb.
-
Fuel consomption vs simbrief profile
Weight band Flown level Aircraft OFP Δ 460–485 t FL361–371 11.7 t/h 14.1 t/h −15.7% 440–460 t FL381 10.5 t/h 12.9 t/h −16.7% 420–440 t FL381 9.9 t/h 11.9 t/h −15.2% 400–420 t FL381 9.9 t/h 11.2 t/h −10.0% 380–400 t FL381 9.9 t/h 10.6 t/h −4.8% 363–380 t FL381 10.0 t/h 9.9 t/h +0.3%
-
Fuel consomption vs simbrief profile
Latest SU7.2B, A388 v1.0.7a OFP FMS prediction Actual Δ vs OFP Off-blocks / takeoff (UTC) 16:10 / 16:25 – 16:13 / 16:23 +3 / −2 min Touchdown / on-blocks (UTC) 05:25 / 05:33 ETA 05:23 (after TOC), 05:27 (near TOD) 05:23 / 05:29 −2 / −4 min Time from takeoff to touchdown 12:59:54 13:00 (preflight) 12:59:53 0 TOW / ZFW 497.3 / 325.9 t – 497.3 / 325.9 t 0 Ramp fuel 172.4 t – 172.4 t 0 Taxi out 1.09 t – 1.01 t −0.08 t Fuel to TOC 11.4 t in 0:26 – 10.3 t in 0:23 −1.1 t (−9.5%) Fuel to TOD 153.7 t at 12:32 – 137.1 t at 12:34 −16.6 t (−10.8%) Trip burn 155.4 t 142.9 t (preflight) 139.6 t −15.8 t (−10.2%) Landing fuel (EFOB) 15.9 t 28.5 t preflight; 28.6 t (dipping to 26.2 t) after TOC; 31.6 t near TOD 31.7 t +15.8 t
-
GSX cargo
Please note that the default GSX profile allows multiple types of cargo that are unsuitable for the A380 to be selected. While AKH ULDs do fit, they are not usually used on A380 flights. Other pallets and ULDs are too large for the hold, but still show.
-
Step climb size
Hi, I have noticed that the A388 did not perform a step from FL381 to FL400 automatically. Is it possible that it only automatically executes 1000ft steps? What if the alt selector is set to 100ft increments?
- FMGCS Problem so far
- Landing performance calculation
-
Runway Waypoint always included
Is this going to be addressed?
-
1.2.7 Fuel Flow increased significantly?
MSFS2024 beta, 1.2.8, A359, P11 Fix FL plan / sim Mach plan / sim TAS plan / sim (kt) Time from takeoff, plan / sim Fuel used plan / sim (kg) Extra fuel used FOB plan / sim (kg) FOB vs plan LAKOL 100 / 123 .58 / .47 370 / 293 0:06 / 0:06 – – 76,457 / 76,676 +219 BAKOR 251 / 248 .79 / .74 482 / 449 0:17 / 0:17 2,624 / 2,534 −90 73,833 / 74,142 +309 TOC 330 / 327 .85 / .84 497 / 492 0:26 / 0:27 4,254 / 4,330 +76 (+1.8%) 72,203 / 72,346 +143 CSO 330 / 330 .84 / .850 493 / 498 1:29 / 1:30 12,076 / 12,487 +411 (+3.4%) 64,381 / 64,189 −192 DJA 350 / 350 .85 / .849 493 / 495 2:59 / 2:59 23,025 / 23,628 +603 (+2.6%) 53,432 / 53,048 −384 USPOK 350 / 351 .84 / .852 495 / 501 4:17 / 4:17 32,287 / 33,472 +1,185 (+3.7%) 44,170 / 43,204 −966 MBA 370 / 370 .84 / .845 491 / 493 6:08 / 6:08 44,963 / 46,355 +1,392 (+3.1%) 31,494 / 30,321 −1,173 BUSIV 370 / 370 .84 / .847 490 / 494 7:00 / 6:59 50,633 / 52,197 +1,564 (+3.1%) 25,824 / 24,479 −1,345 VSA 390 / 390 .84 / .850 487 / 490 7:22 / 7:22 53,172 / 54,632 +1,460 (+2.7%) 23,285 / 22,044 −1,241 EPMAG 390 / 390 .84 / .850 484 / 489 8:28 / 8:26 59,983 / 61,250 +1,267 (+2.1%) 16,474 / 15,426 −1,048 RUDAS 390 / 390 .84 / .848 480 / 487 9:23 / 9:20 65,460 / 66,742 +1,282 (+2.0%) 10,997 / 9,934 −1,063 Landing – – – 9:52 / 9:49 66,780 / 68,212 +1,432 (+2.1%) 9,677 / 8,485 −1,192
-
1.2.7 Fuel Flow increased significantly?
Has this been thoroughly tested? Compared against IRL consumption? Please note that the A359 is affected by the prediction issues, but not the A35K. The latter seems to still require the old fuel flow factors.
-
Runway Waypoint always included
The inibuilds A350 and AS346 include the runway waypoint in the FMC, but the drawing is the same as in the Boeing pictures. The ini A343 draws it just like the A380 The Fenix draws it like the A350, Boeings, and images I linked above. Furthermore, it does not include the runway waypoint in the MCDU, just like in the A350 video.
-
First Officer not visible in exterior view
When in an exterior view, there is no first Officer, but a captain visible.
-
Runway Waypoint always included
Ejets: https://youtu.be/thRBoggrqKA?si=25n4RXsVkeBnJ-Q3&t=419 Couldn't find any airbus ND footage during the approach.
-
Runway Waypoint always included
It shows the runway graphically, but does not connect the approach to it. Otherwise, the aircraft would turn into the wrong direction when initiating a missed approach at MDA in IMC. https://youtu.be/rugPvAqiKzs?si=hUCZJO7Do_QugG06&t=1737
-
Runway Waypoint always included
At RJTT, RJTT22 is not part of the LDAX22 Approach (1:28)
-
First Officer not visible in exterior view
It refers to having selected ‘none’ as player character in the identity options ui, with the intention of removing the first Officer when in cockpit view.
-
1.2.7. performance and predictions
Fix FL plan / sim Mach plan / sim OAT plan / sim (°C) TAS plan / sim (kt) TAS from Mach + OAT (kt) FF plan / sim (kg/h) ΔFF Time vs OFP (min) Extra fuel used (kg) BEALE 350 / 349 .84 / .849 −46 / −47 493 / 498 498 6,550 / 7,439 +13.6% −0.6 +302 MLF 350 / 349 .84 / .849 −47 / −46 491 / 498 499 6,511 / 7,595 +16.6% −0.7 +556 KU78S 370 / 371 .84 / .850 −48 / −48 491 / 496 497 6,608 / 6,985 +5.7% −1.3 +949 KU03U 370 / 372 .84 / .851 −48 / −46 491 / 499 500 6,474 / 6,942 +7.2% −1.6 +1,083 ISN 370 / 373 .84 / .849 −49 / −52 489 / 491 492 6,276 / 6,783 +8.1% −1.6 +1,279 AMENU 370 / 373 .84 / .847 −53 / −54 485 / 488 489 6,136 / 6,547 +6.7% −1.8 +1,504 POPLR 370 / 373 .84 / .846 −55 / −56 482 / 486 486 6,093 / 6,499 +6.7% −2.0 +1,591 57N090W 370 / 369 .84 / .845 −57 / −58 480 / 482 483 6,002 / 6,260 +4.3% −2.3 +1,803 PIDSO 390 / 375 .84 / .847 −48 / −48 489 / 495 495 5,842 / 6,358 +8.8%* −4.2 +2,358 60N050W 390 / 373 .84 / .850 −48 / −48 491 / 497 497 5,896 / 6,342 +7.6%* −4.5 +2,518 59N040W 390 / 371 .83 / .849 −46 / −44 490 / 500 501 5,739 / 6,346 +10.6%* −5.1 +2,799 58N030W 390 / 371 .83 / .847 −44 / −44 490 / 499 500 5,705 / 6,367 +11.6%* −5.5 +3,118 56N020W 390 / 377 .83 / .835 −47 / −52 486 / 484 484 5,586 / 6,113 +9.4%* −5.6 +3,540 CON 390 / 384 .83 / .838 −60 / −62 472 / 474 475 5,286 / 5,329 +0.8%* −6.3 +3,677 MID 390 / 383 .82 / .831 −61 / −61 467 / 472 472 5,078 / 5,079 0.0%* −6.8 +3,715
-
1.2.7. performance and predictions
Fuel flow is a lot higher in v1.2.7 Speed on the FPLN pags jumps between current speed and -0.02M ETA increases during flight, e.g. 1.2 after liftoff to 3.5 close to T/D DECEL wp not fixed on MANUAL leg, IF shows FCU ALT iso realistic altitude, even though correctly shown on VSD EFOB mismatch on PERF and FPLN page during descent turn predictions shown on MAP routing TRK change drawn at FAP, magvar issue? DES MACH .84, regardless of CRZ MACH
