  1. Der Michel
    @Eddie did you notice my feedback?
  2. Der Michel
    @Eddie is this also reported/tracked?
  3. Der Michel
    @Eddie also tracking/forwarded this one?
  4. Der Michel
    During all my flights, the MORA was always indicated with large font numbers. I think there might be a bug: The hundreds have to be shown in small font numbers. Examples from Real AC:
  5. Der Michel

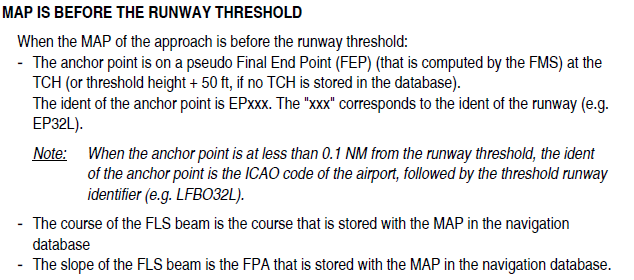

    Example: EDDV27R NDB MAP is 0.6 before runway threshold. So the AnchorPoint has to be labeled EP27R The AnchorPoint is missing at the ND. Also the AnchorPoint height need to be checked. It has to be 50ft or the TCH above the threshold. The FLS was guiding me to low. And just for clarification the rules for other MAP placements:
  6. Der Michel
    The GS diamond at the ND has to be a double diamond like at the PFD.
  7. Der Michel
    The FLS beam has to be cut/removed outside the vertical cut! I marked with red the part that shouldn't be there.
  8. Der Michel
    The symbols/labels need to be drawn above the green path layer.
  9. Der Michel
    The course indicator is drawn outside the drawing box. Has to be clipped.
  10. Der Michel
    The ILS/FLS course indicator overflow box is sometimes drawn, when the course indicator is inside the HDG-tape.
  11. Der Michel
    Fenix is running a lot Code outside MSFS (wasm). Coding is complex and the debug tools for msfs are not the best. The A350 is a real complex aircraft, so a lot potential issues. And maybe some coding skills or the beta testers …. who knows. At the end ini is working hard on the wasm crashes and each update is an improvement. And that’s what is important.
  12. Der Michel
    Let me add some more information. If iniBuilds is doing CDA, it’s currently just wrong. There shouldn’t be any level off decel segment prior FAF. That's the meaning of CDA. Btw: Also the MFD (FPLN) should indicate that pseudo waypoints.
  13. Der Michel
    There is some inconsitency regarding CDA, if this is modeled by iniBuilds. I have two circles with 2 in it at the VD. But not at the ND. Also are two "2" wrong, it should be "1" and "2". ND VD
  14. Der Michel
    and to add...no brackets!
  15. Der Michel
    All relevant runway approaching advisory are not triggered.
  16. Der Michel

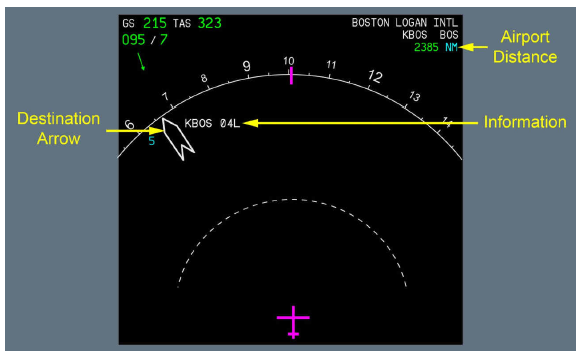

    If a runway is selected in the FMS, the runway code has also to be displayed.
  17. Der Michel
    HI019 is part of the GA and should be blue! Also that leg shouldn't have a -3.0° indication.
  18. Der Michel
    If a FROM is entered at INIT page, the ALIGN ON REF has to display by default the airport reference coordinates and not dashes. The dashes have to be two behind the dot: --°--.-- and ---°--.-- (the ones for N/S and E/W are missing). 3. The LAT LONG window does not accept any input.
  19. Der Michel
    Here the reference from FCOM: and a picture from touchdown:
  20. Der Michel
    The ILS course pointer at the ND-ROSE is drawn with some offset. It has to be on 80° not on 75°. As the pointer is drawn vertical, it's not a wrong value, but a offset drawing issue.
  21. Der Michel
    Hi, the system should untune the T.O. ident when leaving the T.O. phase. The IMNE was from T.O: at EDDM.
  22. Der Michel
    Hi, I' not talking about the T/C for the set CRZ ALT. I'm talking about the T/C for the individual preplaned S/C's. Each S/C should have it's own T/C in the F-PLN.
  23. Der Michel
    And 3. If more then one route is stored in "work\flightplans" the filter (determined by the FROM/TO citypair) does still not work.
  24. Der Michel
    still an issue in 1.08
  25. Der Michel
    The IRS page has to indindicate at the top right the GPS position it's aligning on. Currently there are only dashes.
×
×
