A300-600F

[rlw9sr]

Despite using a variety of simbrief profiles, I am unable to create a feasible cargo flight from PANC-RJAA (~ 3500 mi).  The EFB cannot compute the V speeds!  I’d appreciate any suggestions-thanks

[richboy2307]

Hi,

These are the recommended profiles.

I shall test out with the [600RF GE Freighter] profile and report back. Thanks!



[richboy2307]

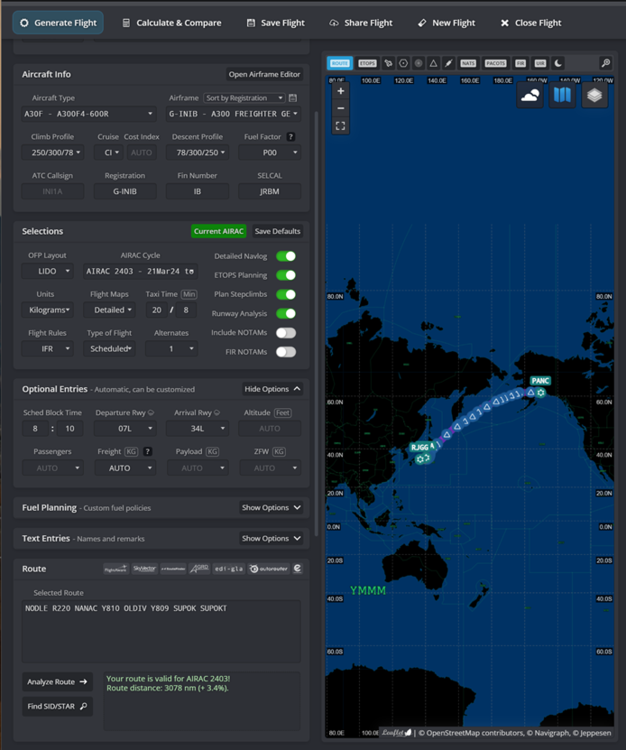

So using the [600RF GE Freighter] profile provided above, I was able to come up with the following simbrief OFP (attached)

• PANC/07L N0445F320 DCT NODLE R220 NOLTI/N0454F330 R220 NATES/N0441F340 R220 NOGAL/N0452F350 R220 NODAN/N0451F360 R220 NANAC Y810 OLDIV Y809 SUPOK SUPOKT RJAA/34L
• CI 15, 3334nm air distance, 31kt headwind along the way (250/36 avg wind)

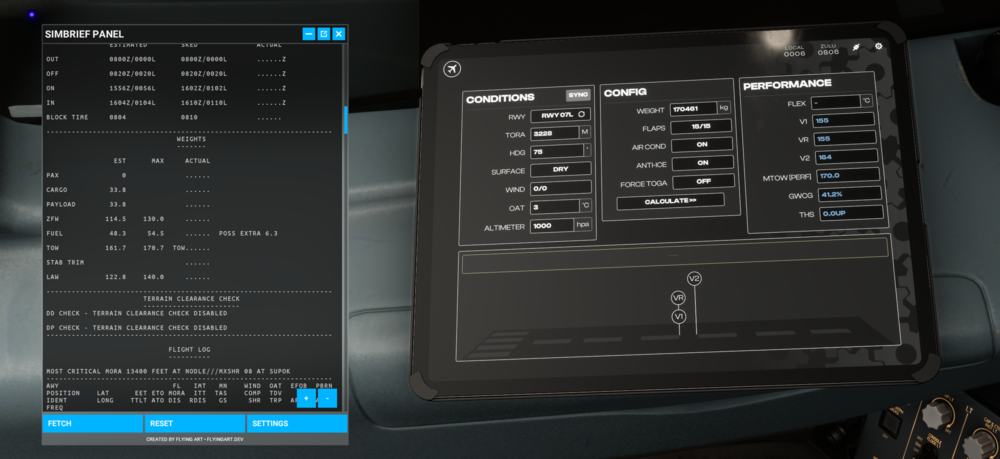

I am able to get perf calculations for 15/15 config, for the shortest runway (7L) even for the following conditions (see screenshot 2):

• max TOW (170.5T kg)
• max fuel (54.5T kg)
• no wind (irl metar PANC 260653Z 00000KT 10SM -RA FEW050 OVC065 03/M01 A2953 RMK AO2 RAB47 SLP003 P0000 T00331006)

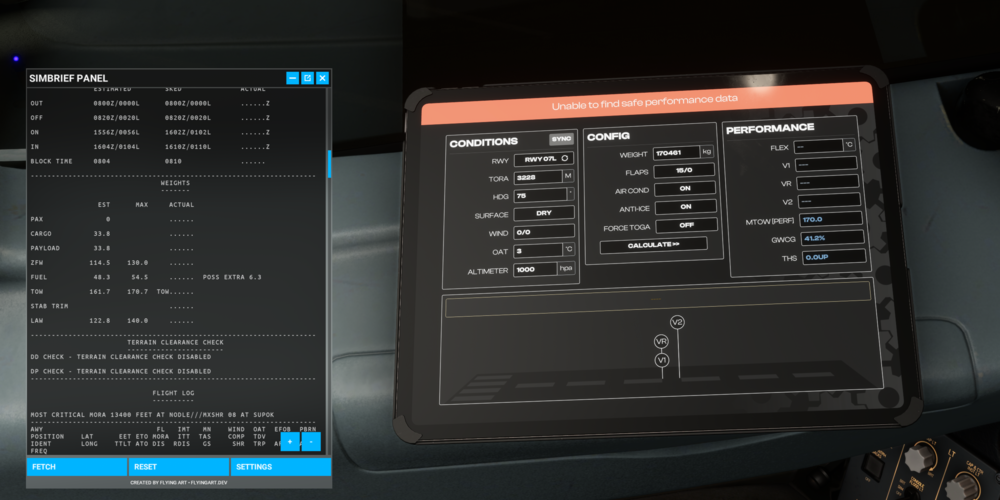

For above conditions, config 15/0 does not work, and it warns me rightfully (see screenshot 3)
So you may need to try various runway & configs (different flaps, aircon OFF, anti-ice off, or force toga ON) to eventually get a valid result.

Anyways, try to use the linked profiles. Should work 🙂

PANCRJAA_PDF_1711438172.pdf

[rlw9sr]

Thanks very much for the information--I think the error I made was in changing the units in the simbrief profile (Metric to Imperial).  I'll report back if the flight is successful--I appreciate your help
