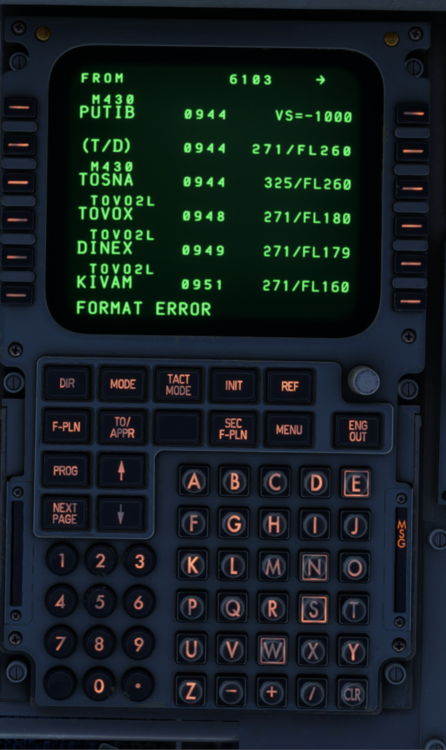

Maverick_2000 Posted January 7 Posted January 7 (edited) I tried to set a altitude restriction during my flight today. Everytime when i press the right button at the waypoint with the restriction, i get a format error message as in the image below. Edited January 7 by Maverick_2000
Fornax Posted January 7 Posted January 7 I presume thats because you have to INSERT the (revised) restrictions in th correct format. Not just press the button... Like /18000 or 250/10000 etc.
artox67 Posted January 7 Posted January 7 (edited) Press the key right beside where you want to put in the restriction and set this in the page which pops up. Is an Airbus not a Boeing 😉 Cheers Edited January 7 by artox67
Maverick_2000 Posted January 7 Author Posted January 7 The problem is that i get a format error when i press the key right beside a waypoint. I know that there should pop-up a page where i can enter the data. I get a format error every time. Kind regards
Fornax Posted January 7 Posted January 7 Thats what Im trying to tell you: There is no pop-up page. Type ex 250/10000 and THEN press the right button where you want to isert the restriction...
rdr Posted January 7 Posted January 7 Pressing the right line select key next to a waypoint shows the VERT REV A page (if the scratchpad is empty).
rdr Posted January 7 Posted January 7 This post https://forum.inibuilds.com/topic/20898-step-pred-page-missing/ shows the VERT REV A page and the relevant section of the Sperry FMS Manual.
Crabby Posted January 7 Posted January 7 Again, doing something wrong. Yesterday I was inbound CYYZ and got a descent to and maintain 17000 which was different from the SID. I selected the RLSK by the waypoint and typed 17000 in the scratchpad, then hit the altitude box and insert. Worked fine. Mark "Crabby" Crabtree AAL311 | PHL I7-9700KF | 2070 Super | Honeycomb Alpha/Bravo | MFG Crosswind
rdr Posted January 7 Posted January 7 1 minute ago, Crabby said: Again, doing something wrong. Yesterday I was inbound CYYZ and got a descent to and maintain 17000 which was different from the SID. I selected the RLSK by the waypoint and typed 17000 in the scratchpad, then hit the altitude box and insert. Worked fine. What was done wrong here? Pressing the right line select key next to a waypoint in order to show the VERT REV A page is per manual. Your described way of doing it is another way of changing speed/alt restrictions directly via a value in the scratchpad.
Crabby Posted January 7 Posted January 7 1 hour ago, rdr said: What was done wrong here? Pressing the right line select key next to a waypoint in order to show the VERT REV A page is per manual. Your described way of doing it is another way of changing speed/alt restrictions directly via a value in the scratchpad. I don't know what was done wrong or what was thought was done right. All I know Is I can enter speed and altitude restrictions at waypoints and modify them as I need. That is why I said doing SOMETHING wrong. 1 Mark "Crabby" Crabtree AAL311 | PHL I7-9700KF | 2070 Super | Honeycomb Alpha/Bravo | MFG Crosswind
Deleted Account Posted January 7 Posted January 7 2 hours ago, Fornax said: Thats what Im trying to tell you: There is no pop-up page. Type ex 250/10000 and THEN press the right button where you want to isert the restriction... Because that is not how it works on this plane / an Airbus. You need to click the R-LSK of the waypoint you want to edit, then put in the restiction in the VERT REV A page as people in this thread already said. Â @Maverick_2000 Can you confirm there is nothing in your scratchpad when you click the R-LSK? Maybe show a video?
Maverick_2000 Posted January 7 Author Posted January 7 Yes, there was nothing in the scratchpad, i cleard the scratchpad. Unfortunately i have no video. After this flight where the problem happened, i have restarted and tried it again. After the restart everything was as it should an i was able to put in restrictions. So maybe it happens only sometimes. I will make a video, the next time the problem happens. Kind regards 1
