APU always consumes fuel from left fuel tanks

[MarcusVT]

I stayed at the ground for a long time with APU on so I got some inbalance in inner tanks. I decided to feed APU using right fuel tanks but it just got fuel from the left. Did I do something, is it a bug or an airplane "feature".

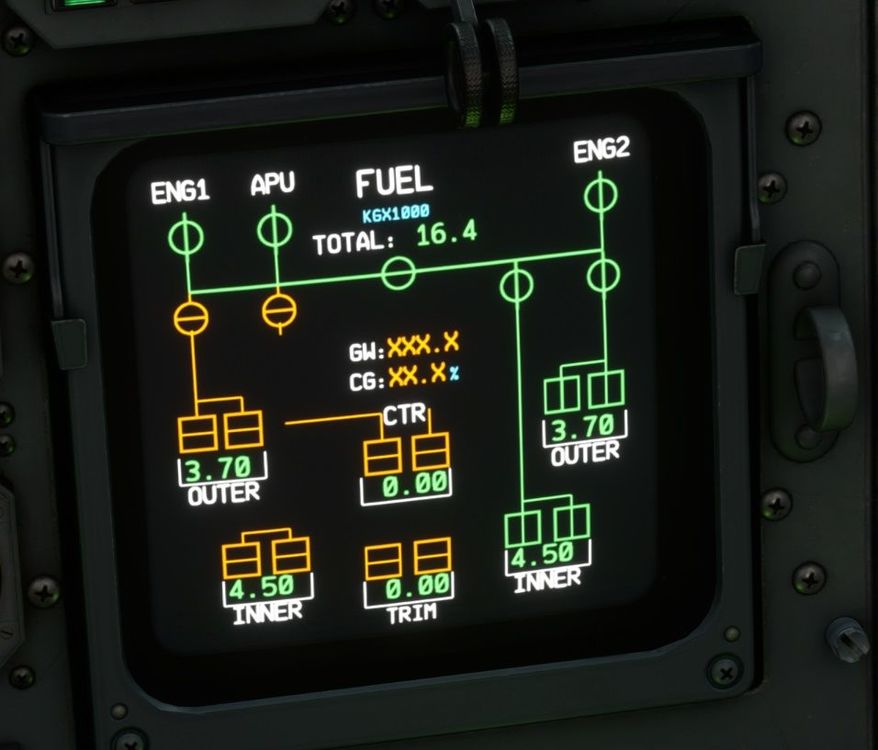

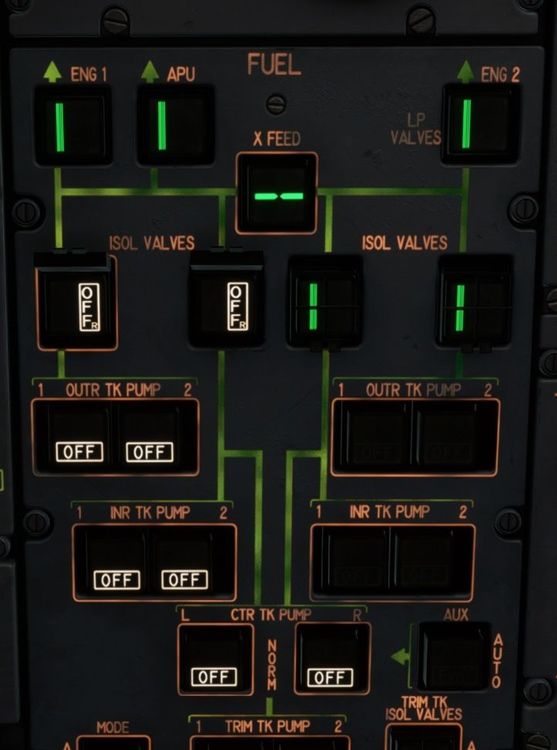

I grabbed two screens with only APU on and you can see that, despite the feed configuration, only the inner left fuel tank has fuel consumed.



[KorEl]

The APU has its own fuel pump which draws fuel from the left inner tank. Starts automatically as you set the APU s/w to on. (The APU pump does not appear on the fuel page). So no matter the position of the engine fuel pumps the APU will feed from the left inner.

I you want to feed the APU from the right side tanks you must set the LH side isolation valves to OFF and open the crossfeed vlv





[MarcusVT]

Just for curiosity I decided to draw fuel only from inner right tank, so I closed the outer valve. The green light showing INNER fuel line is not being drawn, despite the fact the system are working properly. Just a cosmetic bug.
BTW I draw the partial green line.

[richboy2307]

Thanks, bug is logged.

On 6/18/2024 at 9:02 PM, MarcusVT said:

The green light showing INNER fuel line is not being drawn, despite the fact the system are working properly. Just a cosmetic bug.
