ENG Bleed Flow Bars (Cont'd)


Recommended Posts

As the previous topic was closed, I will open it here again.

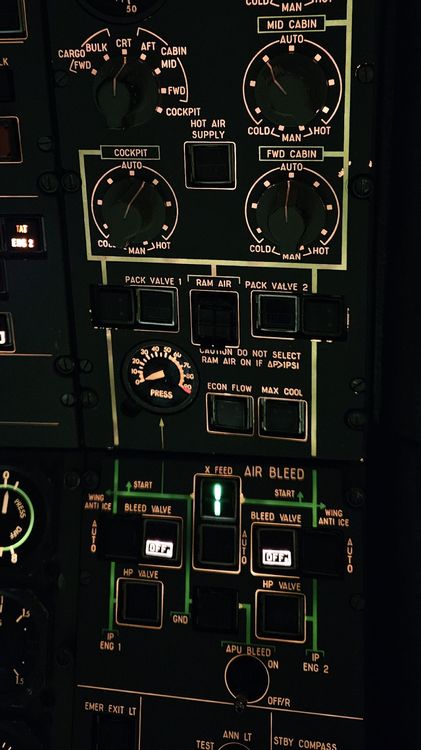

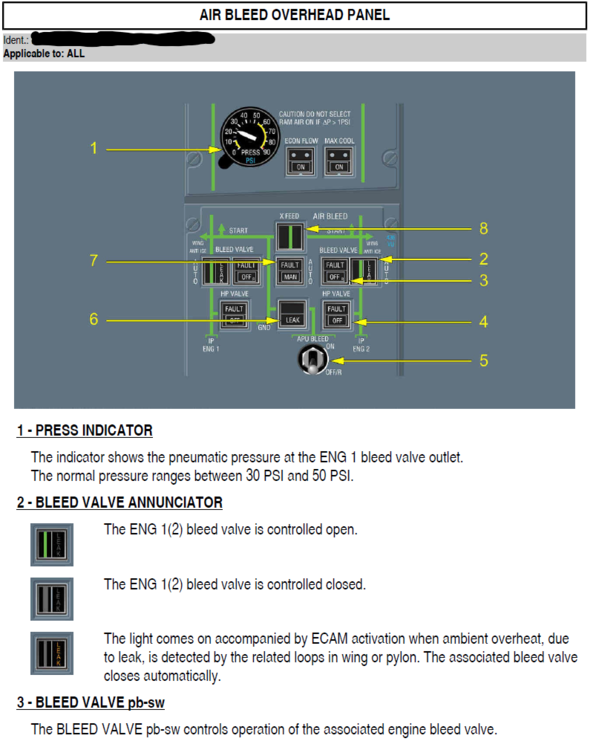

In the "real life photo" (from one of the iniBuilds Administrators) of the Air Bleed Overhead Panel, the flowbars were not illuminated. But that was because the brightness of the flow bars was completely turned down.

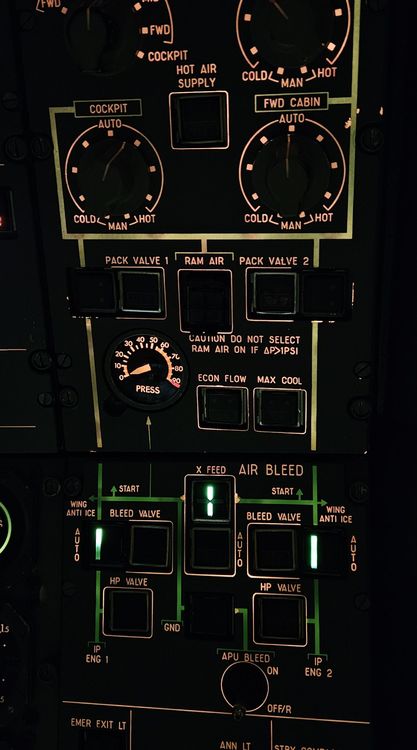

The X-FEED Valve Position flow bar is ALWAYS illuminated, no matter of the conditions met.
On Ground with no bleed source, the Bleed Valve Annunciators are also displayed, if the ENG BLEED VALVE pushbuttons are pressed in (ON/Normal Condition)



  • Like 1
