FMS - DEPARTURE page design issue - 1.08


Recommended Posts

Posted

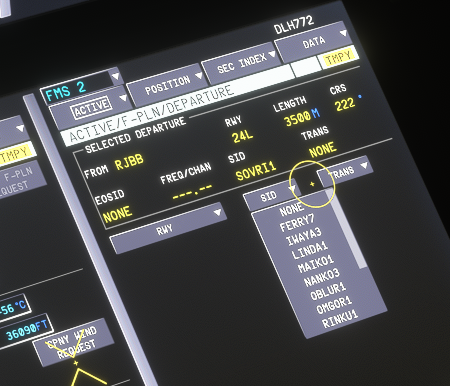

  1. the shouldn't be units behind LENGTH and CRS
  2. EOSID has to be dashed, as long as no RWY is selceted

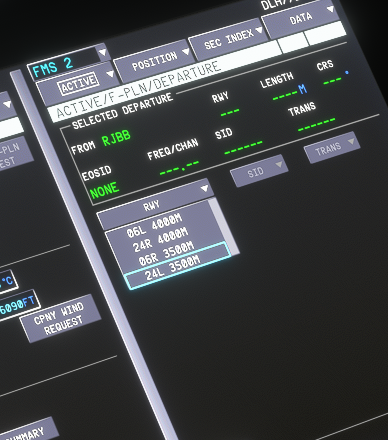

  3. If a RWY has ILS it has to be indicated in the RWY dropdown selection
  4. after selection of RWY, the FREQ/CHAN has to be prefilled with ILS FREQ
  5. SID drop down menu has to offer up to 12 entries, prio scroll requirement
  6. If NONE SID is selcted, the default leg should be a VA-leg and not CA, and should be 1500ft above ground (THR alt + 1500)

image.png.445520f752fe3331541cc6a7d9367c19.pngimage.png.d83ccb3b0bbddfd12a13764d44781973.png

image.png.8c5f691870cc9e64efce6d9613ce0fc9.pngimage.png.fdbde1ded0f33b1ff14c85b345aa5d3a.png

image.png.850256df811f19fdf4d3c9f7054db54a.pngimage.png.82a081e59b8e6c256151f18c1c4ea719.png



image.png.de335a18d17d2d1ad91fb55728b36a61.pngimage.png.f8c768eb52ef2695ce702f9ee9c1a844.png


image.png.40ddc9ae5eed1c20039bc4ff5b9db0c3.pngimage.png.6acb2fddce998a9c2240c9f1a720aebb.png

  • Like 2
