1. The MEMOS are in the wrong order. Correct is:

  • PARK BRK ON
  • ELEC EXT PWR
  • N/W STEER DISC
  • GND SPLRs ARMED
  • APU BLEED or APU AVAIL
  • SEAT BELTS
  • NO PORTABLE DEVICES or NO SMOKING or both?
  • NO MOBILE

    ADS-B TRAFFIC ON maybe as last?

2. Also "GND SPLRs ARMED" shoud have small "s" at the end.
3. Can we please get "NO PORTABLE DEVICES" instead of "NO SMOKING"? Or are both required with this modeled combi switch at the OVHD? If you have an A350 mech in your team, he could check the ELSD document.






Edited by Der Michel

Specs:
CPU-13900K, RAM-64GB-6800, GPU-4090

  • 2 weeks later...
Posted (edited)

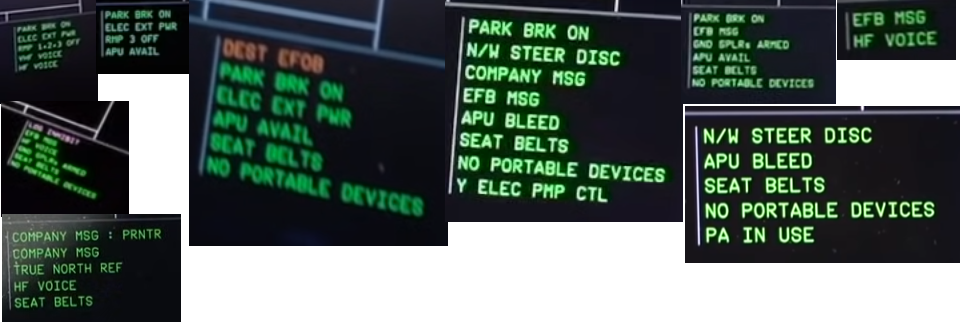

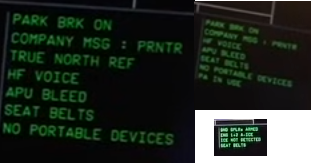

Hi, and now some picture with more information that answers my question 3 from first post:

image.png.5cf7d1df2c9ec7d3930974767e814ab4.pngimage.png.a99c22394c75567a3ccb65dfc79027f4.pngimage.png.2d95982298f8e43a57ce78e4d1cef233.pngimage.png.89c877ad0fe631201b740c8a0da5275b.pngimage.png.f0507782ccd56012017c782210d0b6e8.pngimage.png.5f049bc78b8f0415a62afaa790c3d6c3.pngimage.png.69382cbd85df69ae8dbd65aa852db74f.pngimage.png.cb9c900e830edb3de3603d73ea563e15.pngimage.png.0df6164edb4501aeae7a4a31a8988f4b.pngmemo.png

image.png.52522791d8a8e3e568ac1ae0d9815ff9.pngimage.png.0245895895e6d6cfbce2dbf540837b55.pngimage.png.a1c841073d10d1e629f2c6c5999a305c.pngimage.png.5088856f3e1026ef4c120bc655a7004b.png





So the correct order of MEMOS (the order of the block with ? is not fully verified):

  • DEST EFOB
  • PARK BRK ON
  • ELEC EXT PWR
    • N/W STEER DISC?
    • BRK FAN?
    • COMPANY MSG : PRNTR?
    • COMPANY MSG?
    • EFB MSG?
    • TRUE NORTH REF?
    • ADS-B TRAFFIC ON ?
    • CAPT LOUDSPKR OFF / LO?
    • F/O LOUDSPKR OFF /LO
    • RMP 1+2+3 OFF?
    • VHF VOICE?
    • HF VOICE?
    • CROSSFEED OPEN?
    • GND SPLRs ARMED?
    • ENG 1+2 A-ICE?
    • ICE NOT DETECTED?
  • APU AVAIL
  • APU BLEED
  • SEAT BELTS
  • NO SMOKING
  • NO MOBILE
  • NO PORTABLE DEVICES
    • VIDEO IN USE?
  • PA IN USE
    • Y ELEC PMP CTL?
  • REMOTE C/B CTL ON
  • REFUEL PNL DOOR OPEN
  • REFUEL IN PROGRESS





This is a list from the A330 ESLD, maybe a reference also for A350 regarding priority (but a lot items are different in prio):

  • 1 T.O. MEMO
  • 3 IRS IN ALIGN
  • 4 IRS IN ALIGN ATT
  • 5 REFUEL IN PROCESS
  • 6 JETTISON MEMO
  • 7 TRUE NORTH REF
  • 8 SEAT BELTS
  • 9 NO SMOKING
  • 10 NO PORTABLE  DEVICES
  • 11 GND SPLRS ARMED
  • 12 PA IN USE
  • 13 VIDEO IN USE
  • 14 STROBE LT OFF
  • 15 TRIM XFR PROCESSING
  • 16 TRIM TRANSFERED
  • 17 OUT TK XFR PROCESSING
  • 18 OUT TK TRANSFERED
  • 19 TURB DAMP
  • 20 GSM DISCONNECTION
  • 21 ATC DATALINK STBY
  • 22 COMPANY DATALINK STBY
  • 23 ACARS STBY
  • 24 COMPANY ALERT
  • 25 HYD ELEC PUMP
  • 26 CABIN READY
  • 27 PARK BRK
  • 28 ELEC EXT PWR
  • 29 NW STRG DISC
  • 30 SPEED BRK
  • 31 WASTE PANEL
  • 32 REFUEL PANEL
  • 33 DEST EFOB
  • 34 TCAS STBY
  • 35 ENG A.ICE
  • 36 WING A.ICE
  • 37 ICE NOT DET
  • 38 HI ALT SET
  • 39 IGNITION
  • 41 ACARS MSG
  • 42 ACARS CALL
  • 43 ACARS ALERT
  • 44 COMPANY MSG
  • 45 COMPANY CALL
  • 46 SATCOM ALERT
  • 47 PACK FLOW
  • 48 APU AVAIL
  • 49 APU BLEED
  • 50 PRED W/S OFF
  • 51 GPWS FLP OFF
  • 52 TERR STBY
  • 53 ROW/ROP OFF
  • 54 TERR OFF
  • 55 T.O SURV OFF
  • 56 RAT OUT
  • 57 BRK FAN
  • 58 RAM AIR
  • 59 OXY PAX MASKS DROPPED
  • 60 X FEED OPEN
  • 61 VHF3 VOICE
  • 62 HF VOICE
  • 63 AUDIO SWTG
  • 64 HF DATA OVRD
  • 65 EFIS SWTG
  • 67 BKUP SPD/ALT
  • 68 ADIRS SWTG
  • 69 FM SWITCHINGW
  • 70 EMER GEN
  • 71 FLT L/G DOWN
