Static Inverter Test

[ual763]

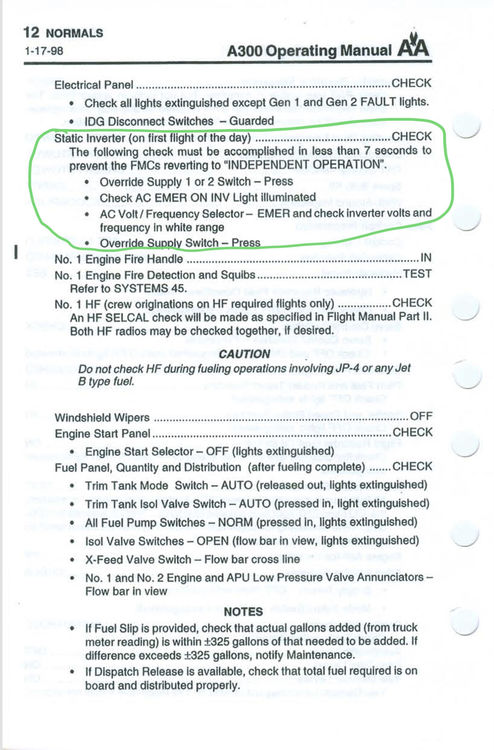

The Static Inverter test does not perform as indicated in the manual.  Please see attached photo to replicate.   Try performing  with both OVRD SUPPLY switches 1 & 2.



[Deleted Account]

Thanks, will take a look 🙂

[Agent_Wurst]

The test won't work with BOTH OVRD SUPPLY Switches ON, because then you are in DUAL OVRD SUPPLY, so everything is split up. The Test should work with only 1 OVRD SUPPLY Switch ON. My company does the test a little different: Only BAT ON (without any OVRD SUPPLY) you check AC EMER ON INV light ON & DC ESS ON BAT light ON.

Attached you will find the schematic of the Electrical System

[ual763]

2 minutes ago, Agent_Wurst said:

The test won't work with BOTH OVRD SUPPLY Switches ON, because then you are in DUAL OVRD SUPPLY, so everything is split up. The Test should work with only 1 OVRD SUPPLY Switch ON. My company does the test a little different: Only BAT ON (without any OVRD SUPPLY) you check AC EMER ON INV light ON & DC ESS ON BAT light ON.

Attached you will find the schematic of the Electrical System

Yeah, I could have worded it better.  I meant to try the test with both OVRD Supply Switches 1 & 2 separately.  The tests in the sim work differently for each switch, but neither one is quite correct.



Cheers,

Rob
