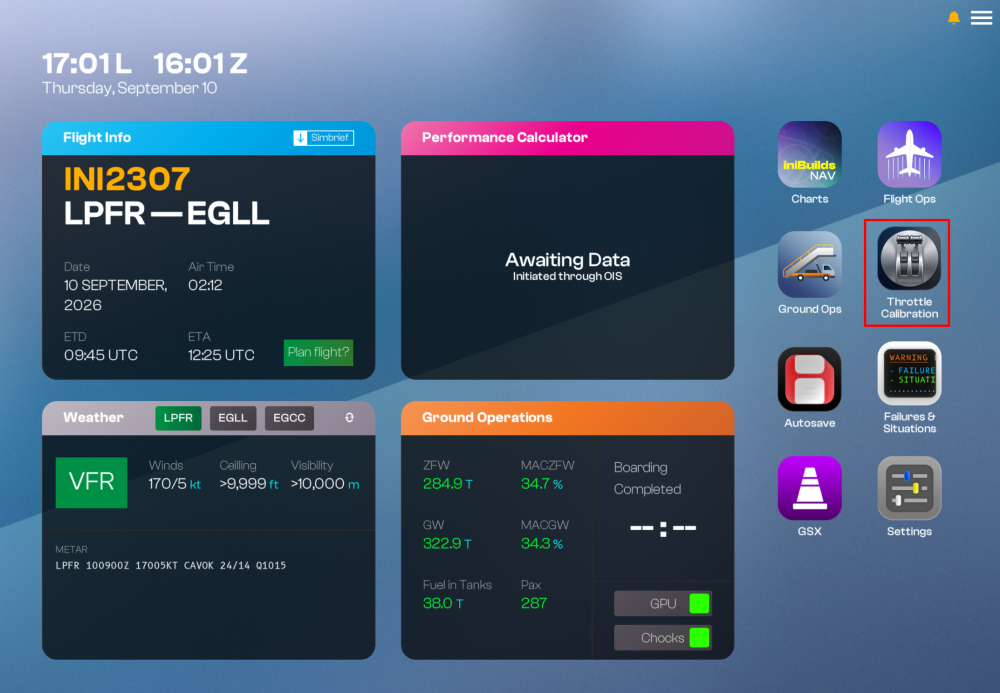

Throttle Calibration Page (EFB)

Before you fly, you must calibrate your throttles via the Electronic Flight Bag (EFB) - Throttle Calibration page.

(Click to enlarge image)

Quote

Note: You must assign Throttle Axis 1 to 4 in the MSFS Controls settings to your available hardware axis accordingly. The Throttle Calibration process is not a substitute for control assignment in MSFS Settings. The purpose of calibration is to assign detents and dead zones only.

Throttle Calibration Process

Typically the throttle calibration is done in the following order

1. Ensure that Throttle Axis or Throttle Axis 1 to 4 are assigned in the MSFS Control settings.

2. Set desired REVERSERS ON AXIS option

3. Set desired INPUT AXIS COUNT option

4. Set desired INPUT DEADZONE %

5. Move your hardware throttle axis to the position you want to define as a detent (e.g. IDLE/CLB/FLX/TOGA)

6. Click the SET (DETENT) POSITION button on the EFB to define the current position to the detent chosen

7. Observe new detent position shown on the diagram on the right.

8. Repeat Steps 4 to 7 for each desired detent.


Quote

Note: You will have to repeat this process if you want to change DEADZONE % or REVERSERS ON AXIS option after completing the calibration.



Reversers on Axis Option

Verify whether your hardware has a reverse thrust on an axis or not then choose the appropriate option.

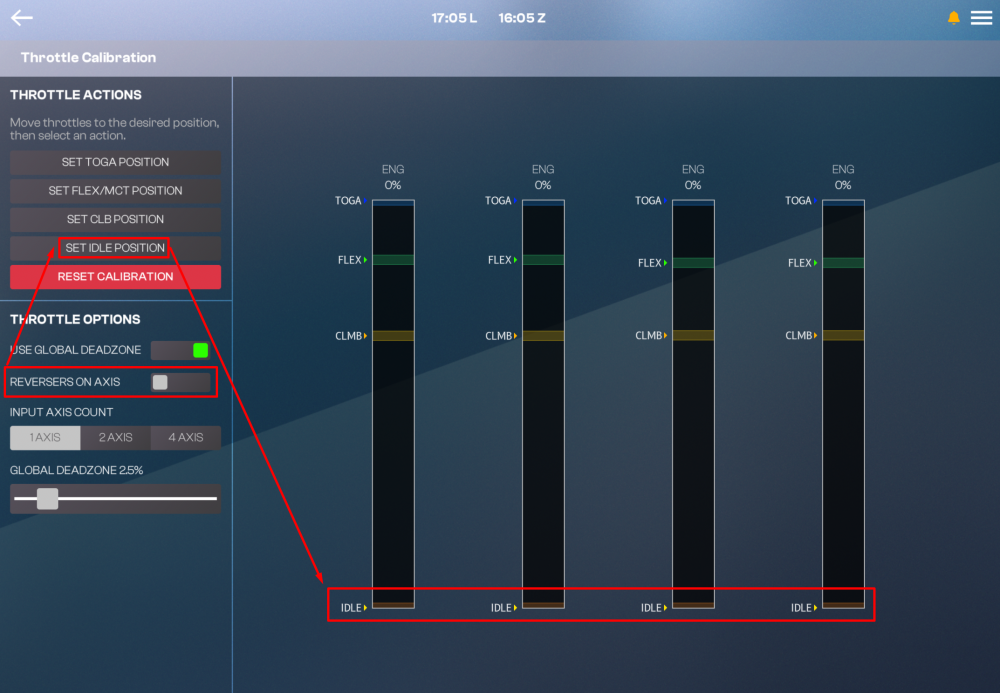

'REVERSERS ON AXIS' is set to OFF:

• The bottom most position of your hardware axis (0%) will be assignable to the IDLE detent position.

• You may have to bind 'HOLD' / 'TOGGLE  REVERSE THRUST' sim control binding to an additional button / input on your hardware to use reverse thrust.

• This option is recommended for majority of consumer flight simulation hardware (including Xbox Controllers).

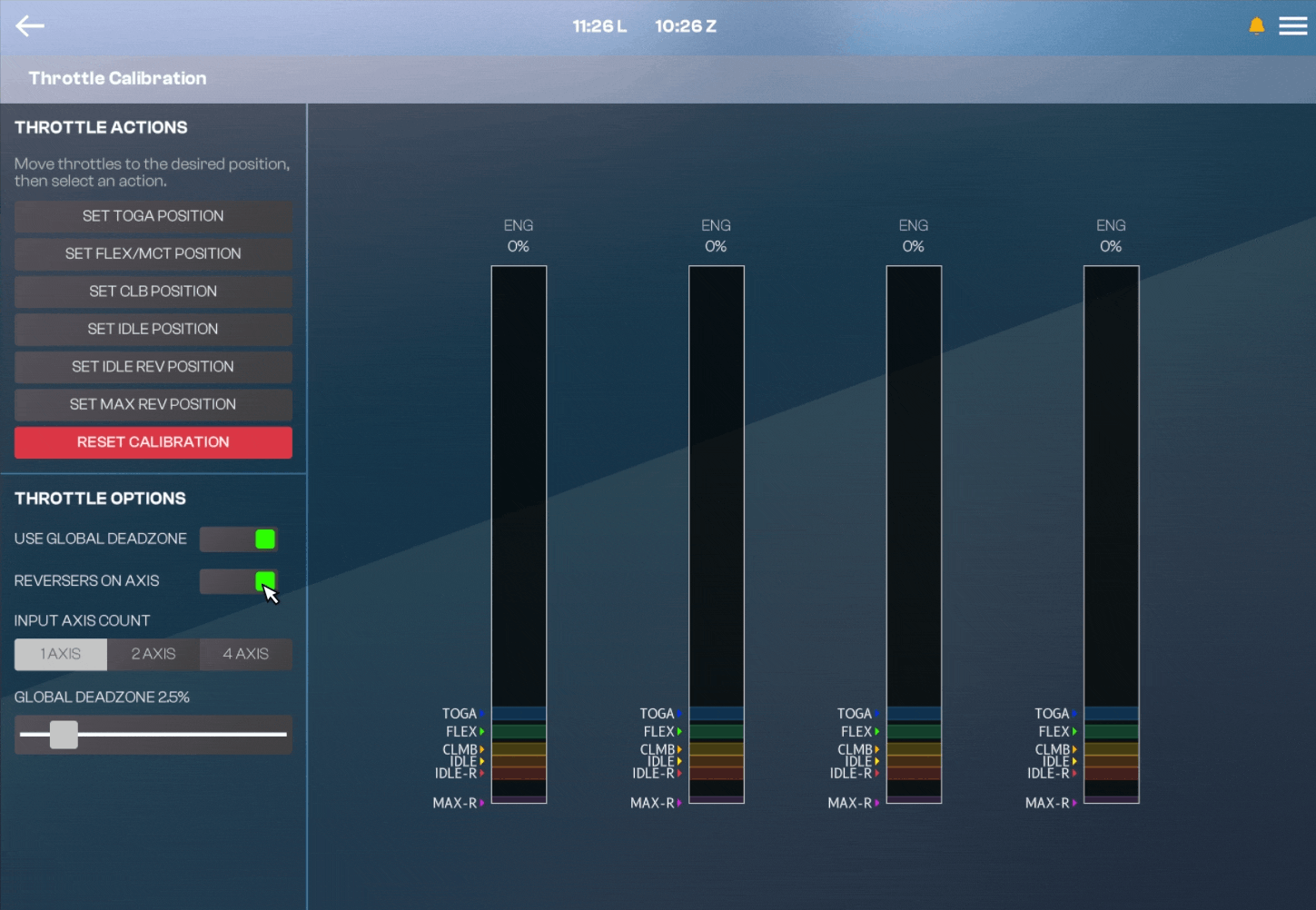

'REVERSERS ON AXIS' is set to ON:

• The bottom most position of your hardware axis (0%) will be assignable to the MAX REV detent position for thrust reverser operation.

• You can additionally define separate IDLE and IDLE REV detent positions.

• This option is recommended for hardware such as the WinCtrl or TCA Airbus Throttle Quadrants.

(Click to enlarge image)

Note: The A380 only has reversers on the inboard engines (ENG 2 and 3).

This is to reduce risk of Foreign Object Debris (FOD) ingestion as the outboard engines (ENG 1 and 4) are positioned much further out on the wing, closer to the runway edge

Input Axis Count Option

Verify whether your hardware has 1, 2 or 4 independent hardware axis available for throttle control, then choose the appropriate option. This changes how the calibration values are copied across ENG1 to ENG4.

Quote

Note: This option is not a substitute for control assignment in MSFS Settings. You must still assign Throttle Axis 1 to 4 in the MSFS Controls settings to your available hardware axis accordingly.

Input Deadzone Option

You can configure the Input Deadzone % either:

• Globally: Apply the same deadzone to all detents, or

• Independently: Set a unique deadzone for each detent.

This is controlled via the USE GLOBAL DEADZONE toggle.

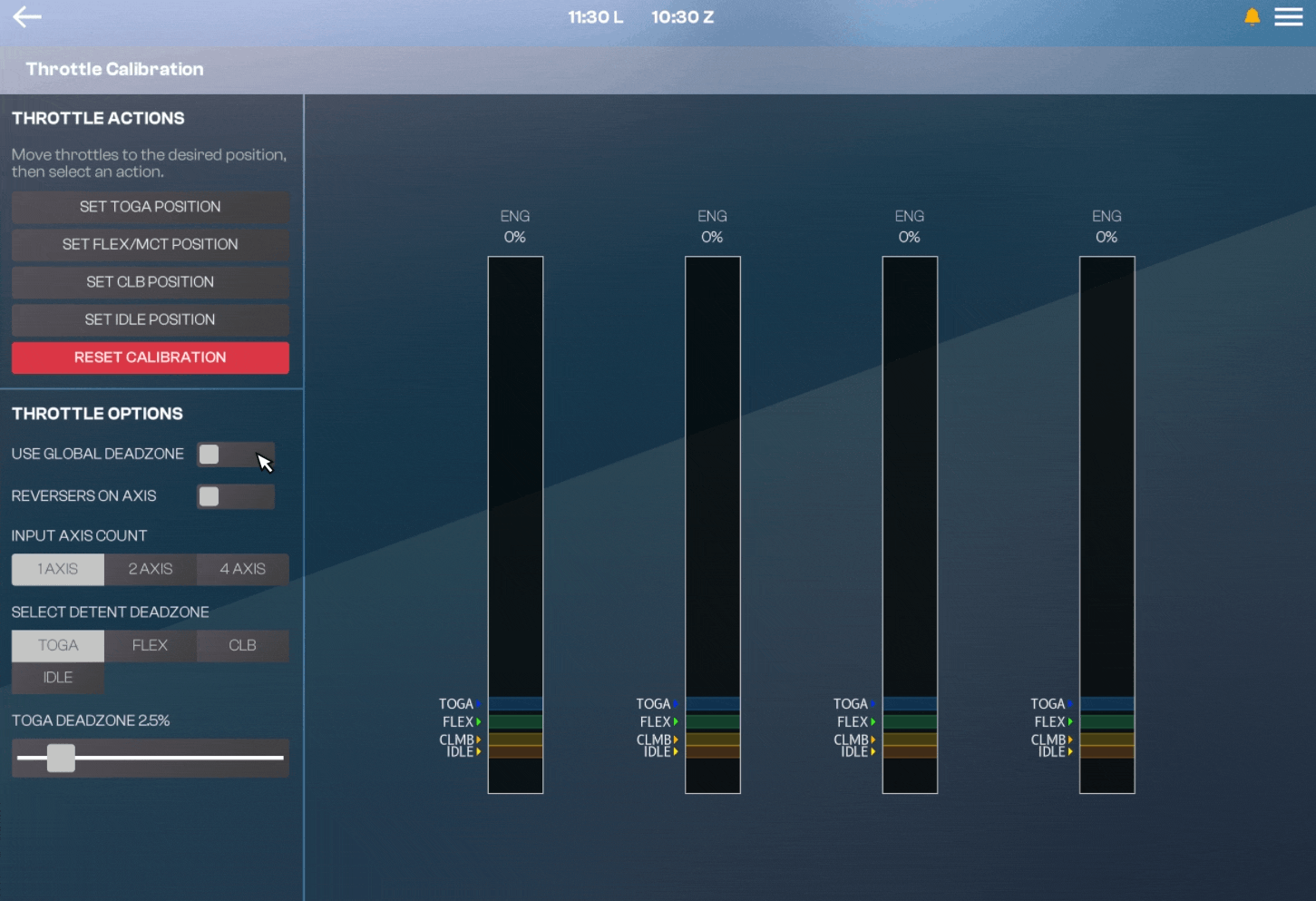

The current deadzone boundaries are displayed on the axis diagram (right side) as colored boxes above and below your current AXIS % value.

• What it means: The detent activates whenever the ENG1 to ENG4 % values fall within the defined box.

• Larger deadzone % = larger colored box = Detent engages across a wider range of hardware movement.

• Smaller deadzone % = smaller colored box = Detent requires more precise positioning

'USE GLOBAL DEADAONE' is set to ON:

• Applies the same deadzone to all detents.

• Adjust by moving the GLOBAL DEADZONE % slider.

• You will see the boundary boxes change visually for all detents.

'USE GLOBAL DEADAONE' is set to OFF:

• Sets a unique deadzone to each detent.

• Adjust by choosing a detent under SELECT DETENT DEADZONE and then moving the XXXX DEADZONE % slider (where XXXX is your chosen detent).

• You will see the boundary boxes change visually for the chosen detent.

Applying a Deadzone %

• Use the slider to choose the desired 'DEADZONE %' value (Default is 2.5%).

• Move your hardware throttle axis to where you want to define a chosen detent.

• Click the SET (DETENT) POSITION button to apply the set value to your detent.

Quote

Note:  If you want to change the 'DEADZONE %' value, you must repeat the Throttle Calibration Process again after setting new value.

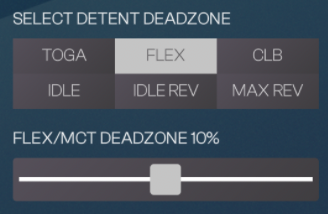

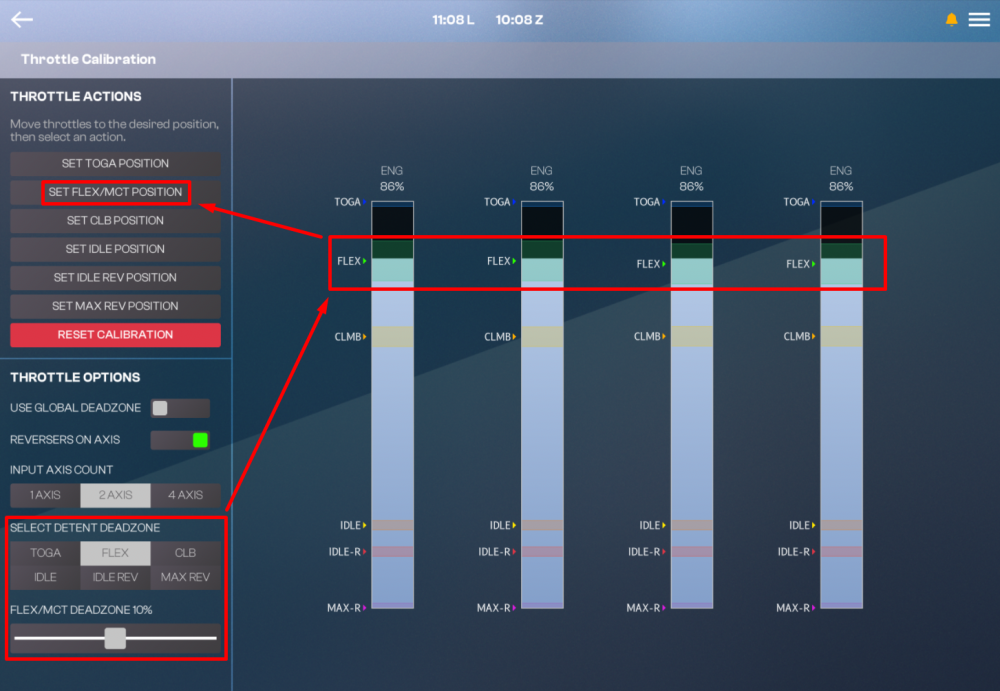

Example - Applying a 10% Deadzone to FLEX/MCT detent
(Click to enlarge image)

Example Throttle Calibration Process

Example #1  - Defining a CLB detent with Reverser On Axis = NO and independent Deadzone %

1. Set REVERSERS ON AXIS to OFF

2. Move your hardware axis physically to where you want to define the CLB detent.

3. Set USE GLOBAL DEADZONE toggle to OFF

4. Select the CLB detent from SELECT DETENT DEADZONE

5. Set your desired 'CLB  DEADZONE %' using the slider.

6. Press the 'SET CLB POSITION' button on the EFB.

7. Verify on the diagram on the right a CLIMB > appears showing the newly defined CLB detent position, with the relevant % above.

Quote

Note: A 6.5% Input Deadzone set for a CLB position defined at 75% axis value means that CLB Detent will engage anywhere between 68.5% to 81.5% axis value after calibration.

(Click to enlarge image)

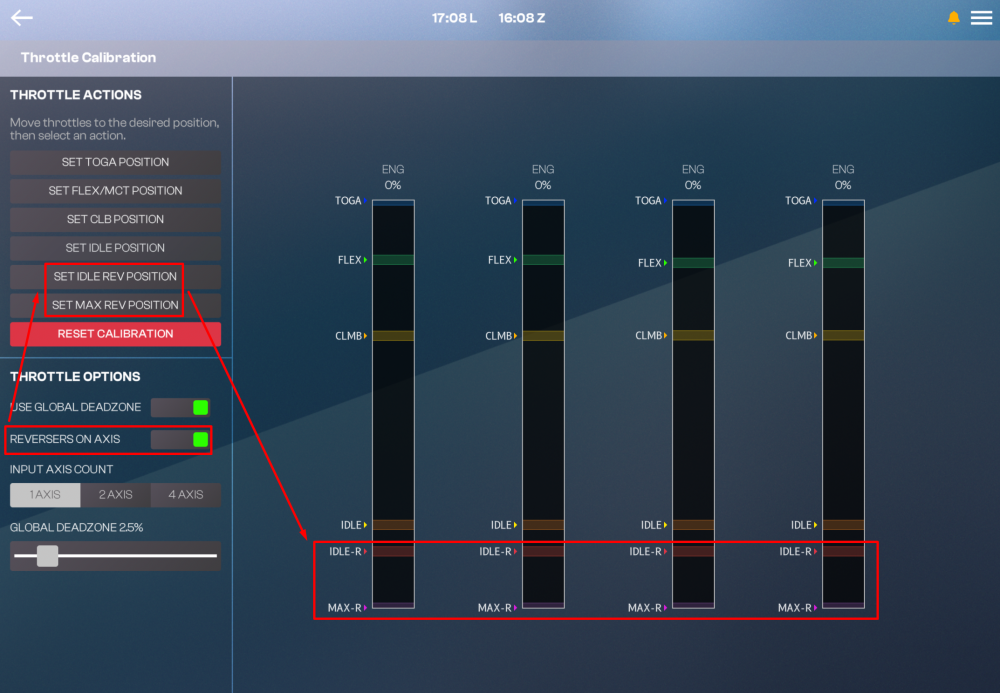

Example #2  - Defining a Max Reverser detent with Reverser On Axis = YES and Global Deadzone %

1. Set REVERSERS ON AXIS to ON

2. Move your hardware axis physically to where you want to define the MAX REV detent.

3. Set USE GLOBAL DEADZONE toggle to ON

4. Set your desired 'GLOBAL  DEADZONE %' using the slider.

5. Press the 'SET MAX REV POSITION' button on the EFB.

6. Verify on the diagram on the right a MAX-R > appears showing the newly defined MAX REV detent position, with the relevant % above.

(Click to enlarge image)



Quote

Note: WinCtrl and TCA Airbus Throttle Quadrant users - for best results, ensure the following
- Assign your left throttle to THROTTLE 1 AXIS and THROTTLE 2 AXIS , and
- Assign your right throttle to THROTTLE 3 AXIS and THROTTLE 4 AXIS
- On the EFB Throttle Calibration app, use 4-Axis Option





Issues with Calibration

If you experience any issues with the Throttle Calibration process, you may force-reset the calibration on the EFB via either of the following methods:

• PC & Xbox: Press the 'RESET CALIBRATION' button,

• PC Only: Delete the 'ThrottleData.ini' file to start fresh on next launch of the simulator. This file will be found in the work folder of the aircraft, and the path will vary based on where you purchased the simulator:

  Steam: %APPDATA%\Microsoft Flight Simulator 2024\WASM\MSFS2024\inibuilds-aircraft-a380\work
  MS Store: %LOCALAPPDATA%\Packages\Microsoft.Limitless_8wekyb3d8bbwe\LocalState\WASM\MSFS2024\inibuilds-aircraft-a380\work



Issues with Reversers

If you experience any issues with the operation of reversers on hardware with reverse on axis (E.g. TCA Quadrant Airbus Edition), please ensure the following:

• Reverse on Axis: Ensure you have selected YES on the EFB Throttle Calibration page.

• Calibration: Ensure you have completed the calibration at least once. This will ensure the creation of a 'ThrottleData.ini' file.

• ThrottleData.ini : The file can be found at the path stated above. Open with a text editor (e.g. Notepad) and check that it says the following -

  [throttle]
  reverse_on_axis = true

  If it says false, change it to true as above and save the file. Reversers should then work after a sim restart.
