How To - Calibrate Throttles

The Synaptic A220 allows you to calibrate your throttles for an optimal experience for your hardware.

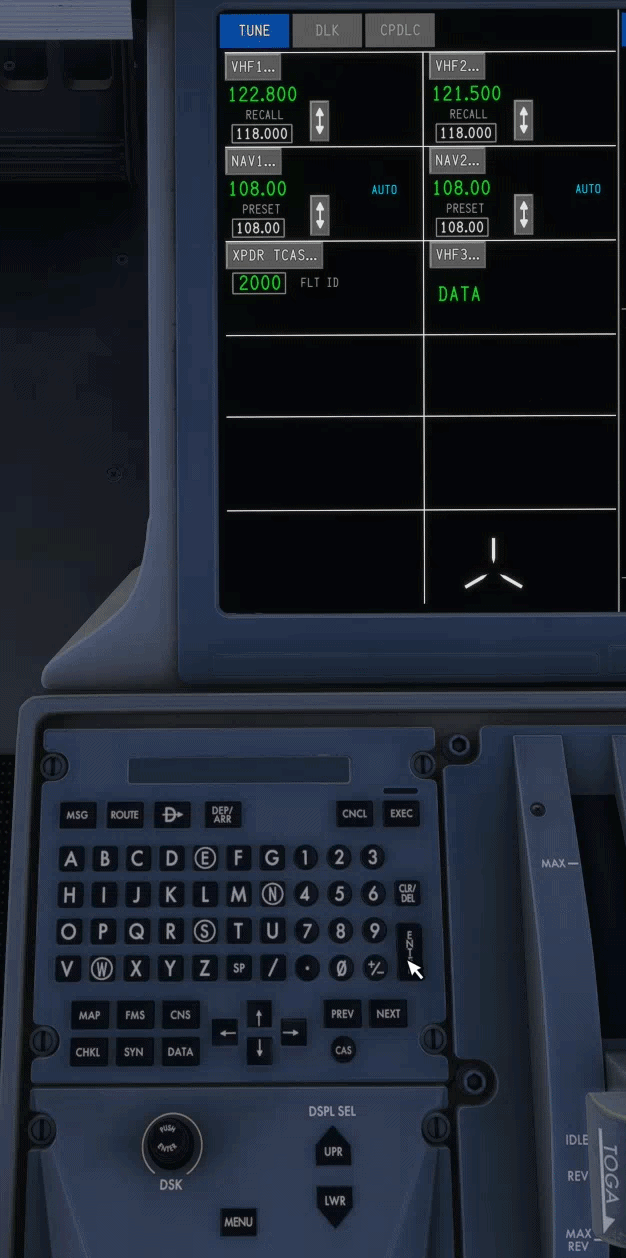

The Calibration page is located on the Maintenance page in the FMS. To access, press MENU on the Cursor Control Panel (CCP), and then click DATA -> MAINTENANCE. From there, you can access the Throttle Calibration page.

Calibrating your Throttles

Chose between AXIS, AXIS+BUTTON or BUTTON depending on your setup. The instructions on the calibration page will walk you through the rest accordingly.

Note: For hardware with Reversers On Axis (e.g TCA/WinCtrl Airbus Throttle Quadrant)

• please use the THROTTLE 1 AXIS and THROTTLE 2 AXIS control bindings.

• The use of THROTTLE 1 AXIS (0 to 100%) and THROTTLE 2 AXIS (0 to 100%) is not supported.

Note: Reverse Thrust is limited to idle by FADEC below below 55 KIAS. Please validate your calibration with reference to thrust levers movement in the cockpit when stationary.
