How to - Access Charts

In MSFS 2024, the A220 EFB Charts app supports both default LIDO and Navigraph charts, which can be toggled on the EFB 3rd Party Settings page. Meanwhile MSFS 2020 supports Navigraph charts only.

Note: Use of Navigraph Charts requires an active Navigraph Ultimate subscription.

Navigraph Login - EFB

• Connecting Navigraph

  • Scan or click on Open Browser to approve Navigraph integration.

  • Refresh code will generate a new approval code.

  • Window will close automatically once connected successfully

• Disconnecting Navigraph

  • Pressing the logout button will reset the token.

• Purpose

  • To connect your account and allow the EFB to access Navigraph API features such as Charts.

Switching Charts Source - EFB

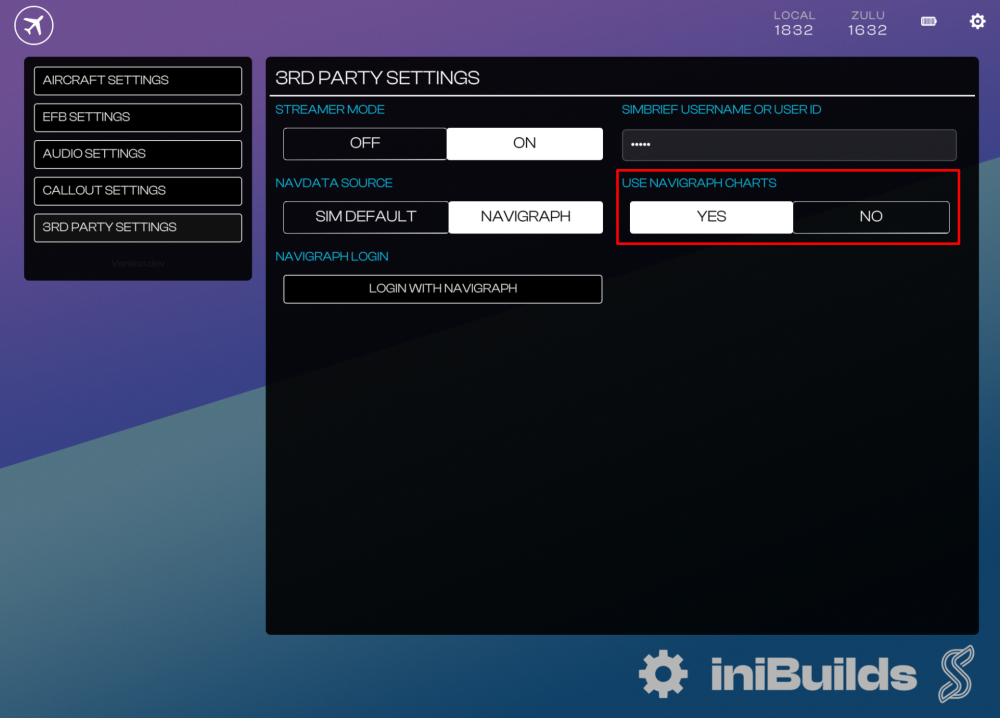

MSFS 2024 Only: Toggle EFB Settings > 3rd Party Settings > 'Use Navigraph Charts'. Select YES for Navigraph or NO for default LIDO charts.

Using Charts App - EFB

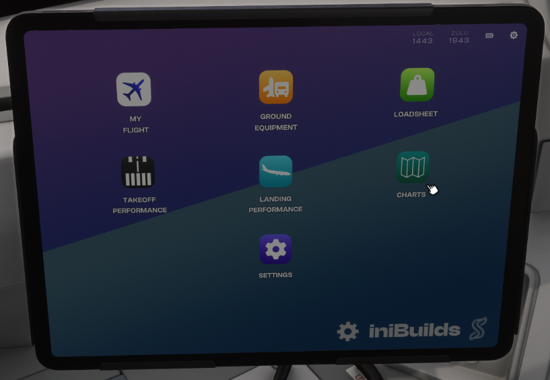

1. Select the “CHARTS” app from the home page.

2. Select your desired airport.

   • Automatic: If loaded via "My Flight," departure and arrival airports populate automatically.

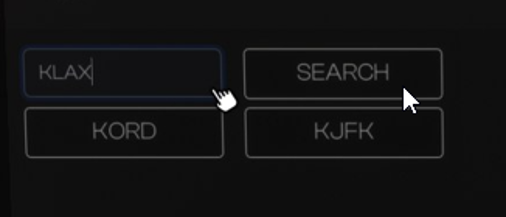

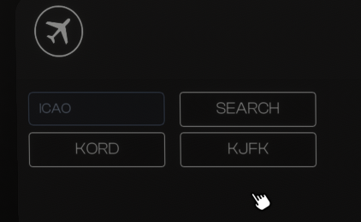

   • Manual Search: Type any airport ICAO code into the top-left box and press [Enter] to load its chart library.




3. Once an airport is selected, the chart category selector and pinboard (last symbol on the right appears at the bottom of the screen. The layout varies slightly depending on the provider:

   LIDO:


   Navigraph:

   *Note: The categories may vary depending on the chosen airfield.


4. Select any chart via the list on the left hand side to display it full on the right side of the display.

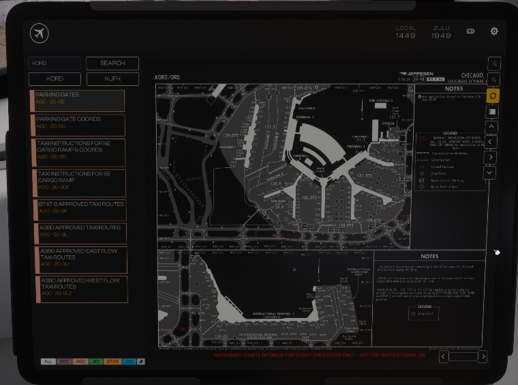

   LIDO:

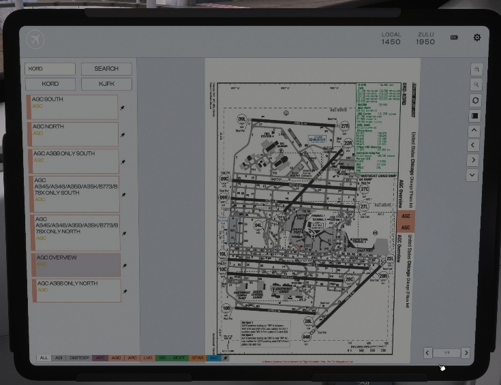

   Navigraph:

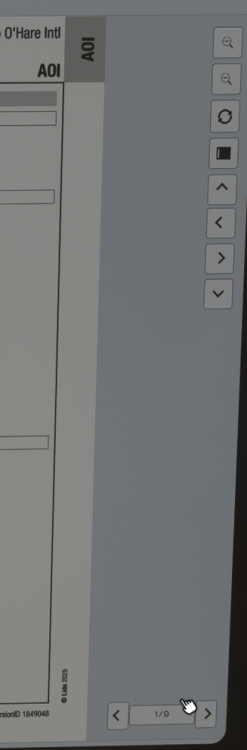

5. The right-side control pane lets you adjust zoom, refresh current chart, toggle the selection pane, and pan the chart (or drag using the mouse).



   At the bottom you will find a Page Selector for navigating between pages on charts where applicable.

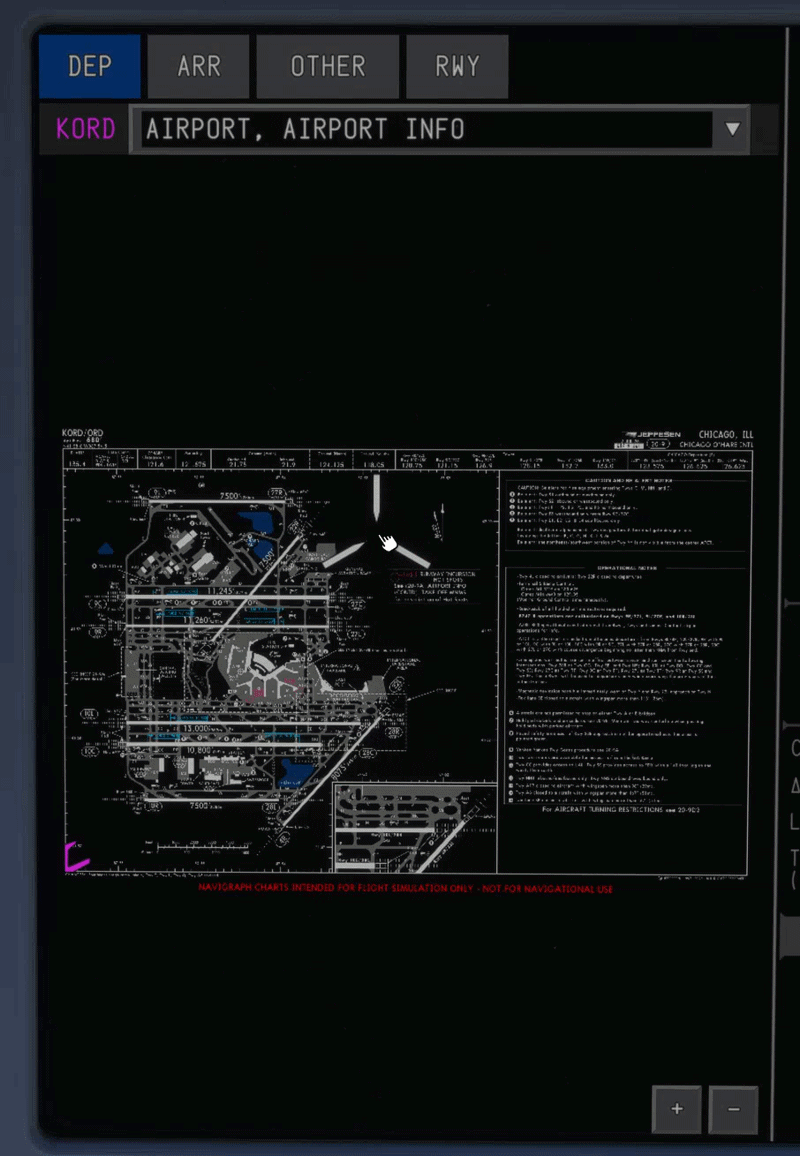

Using charts in the Avionics

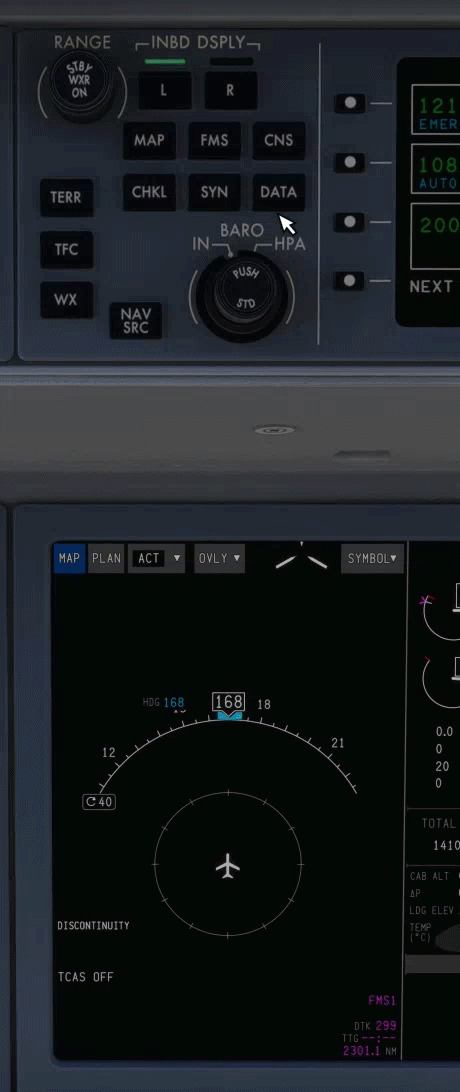

To access charts within the avionics, simply click the DATA button on the relevant display controller.

Once on the DATA page, charts relevant to your flightplan and chosen procedures will be accessible via the menu. You can zoom in, zoom out, and click and drag to pan the chart around.

Clicking anywhere on the chart will bring up a menu for various functions including a split screen, day/night mode toggle, and re-centering.

To select which charts you'd like to view, click anywhere in the chart window to bring up the menu and choose AVAILABLE CHARTS...

Once there, a dialogue box will appear asking you to select the chart for each relevant phase of flight. Once selected, that chart will be available in the drop down menu at the top of the page.
