How to - Import flightplan & winds from SimBrief

Your planned SimBrief flightplan may be imported directly into the FMS. This flightplan can also be loaded onto the Electronic Flight Bag (EFB) to view the Operational Flight Plan (OFP). Please follow below steps for setting up and using this feature.

Importing Route into FMS

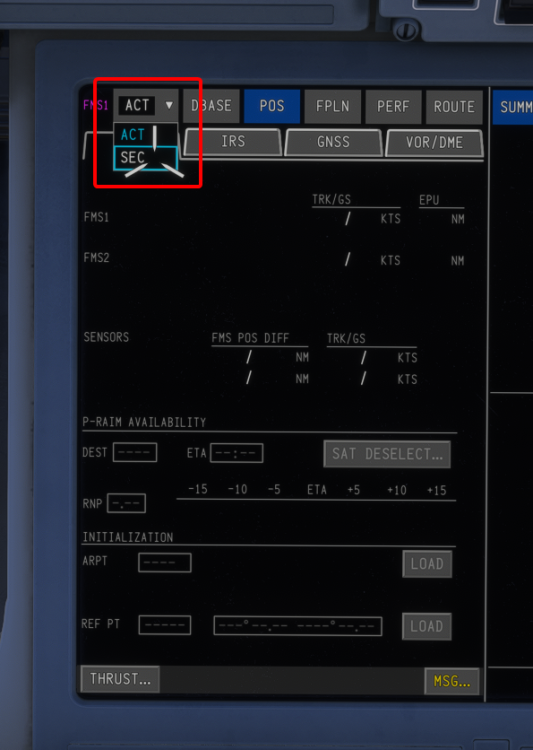

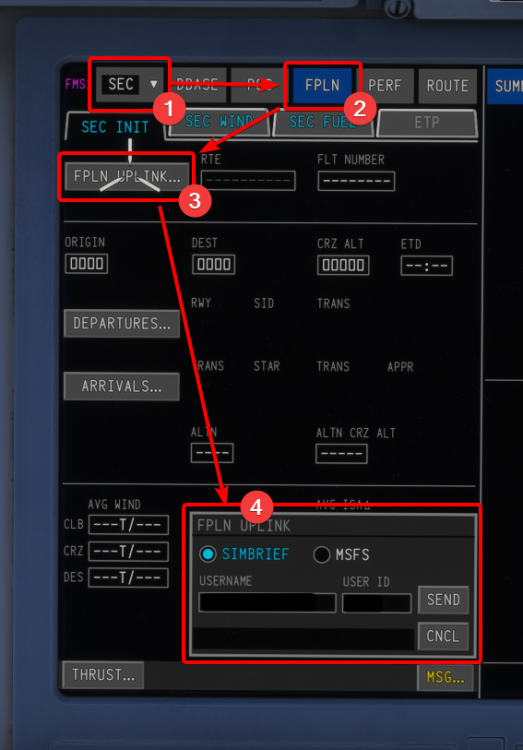

In the A220, flight plans are downloaded into the Secondary Flight Plan. To import a flight plan, first navigate to the SEC mode of the FMS page. Next, choose FPLN from the top menu, Click FPLN UPLINK... and follow the instructions in the dialogue box.

Note: Your Simbrief User ID is found on the 'Account Settings' page on the Simbrief.com website.

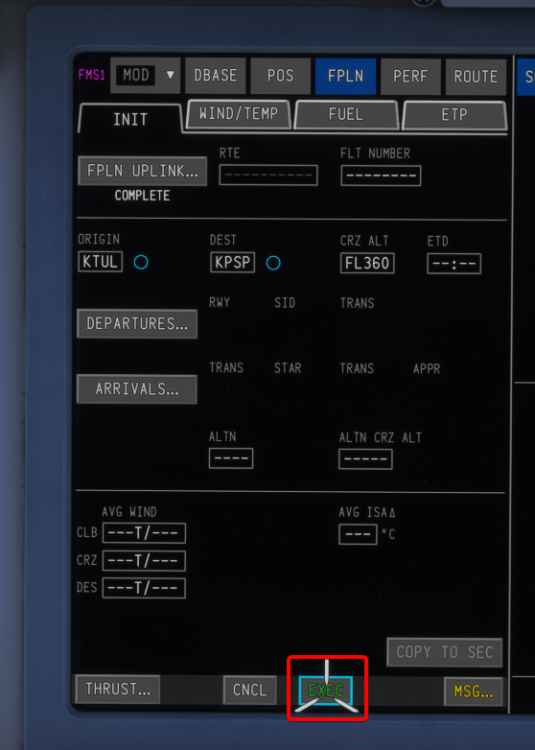

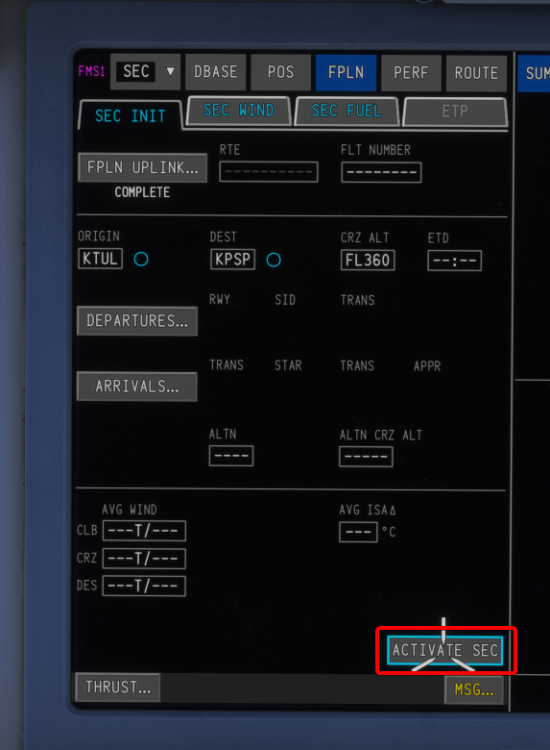

Once you are happy with your flightplan, you can click ACTIVATE SEC -> EXEC. This will activate the secondary flightplan and automatically take you back to the active flightplan.

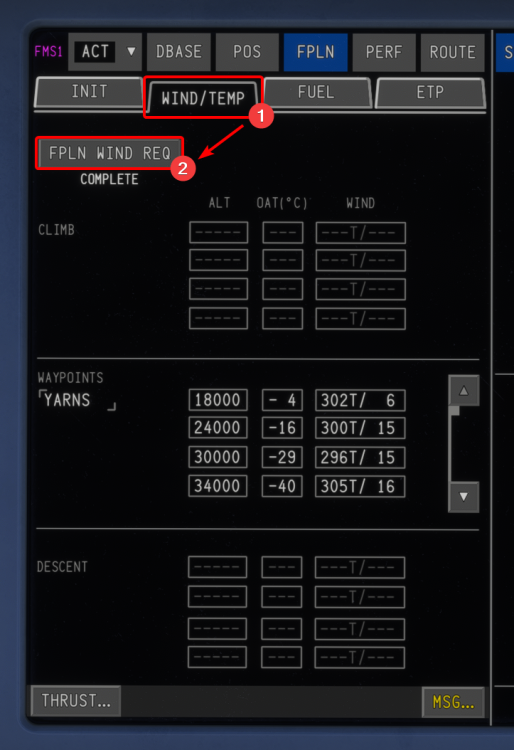

Once your flightplan is activated, you can import the Winds Aloft by navigating to the WIND/TEMP tab of the FPLN page and clicking FPLN WIND REQ. Winds will automatically populate within the WAYPOINTS section of the page.

Importing into EFB:

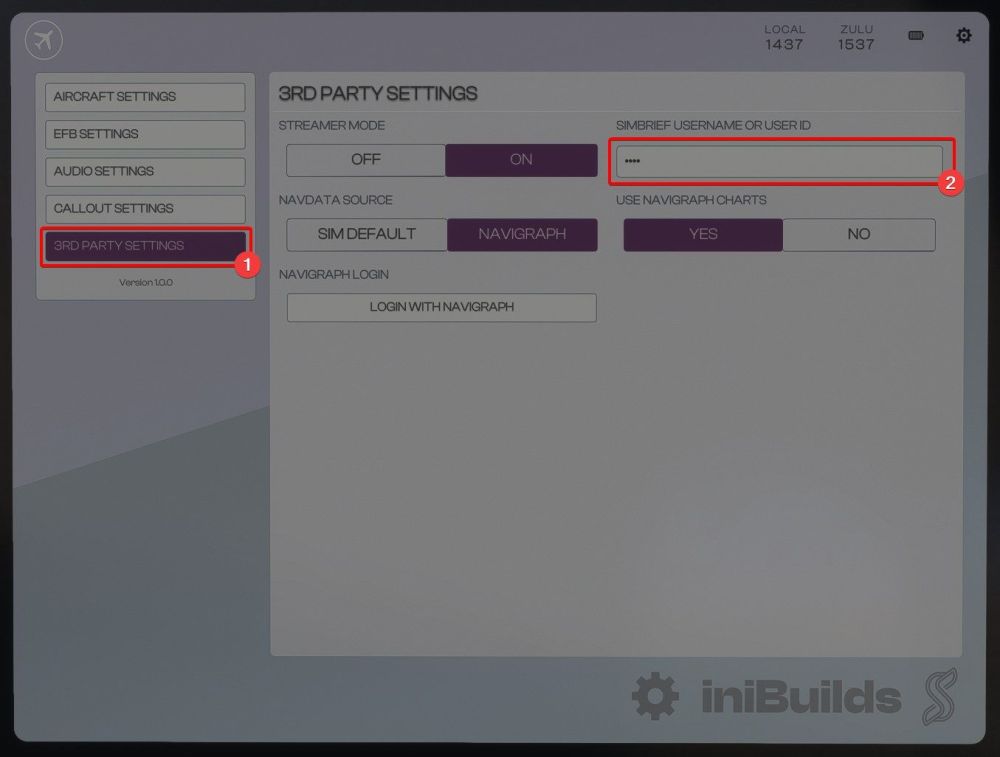

First, navigate to the SETTINGS app within the EFB. From the 3rd party tab, you can enter your Simbrief User ID which is necessary in order to import your flightplan.

Note: Your Simbrief User ID is found on the 'Account Settings' page on the Simbrief.com website.

Once your Simbrief User ID is entered, You can import your Simbrief Flight information on the EFB through the MY FLIGHT app.

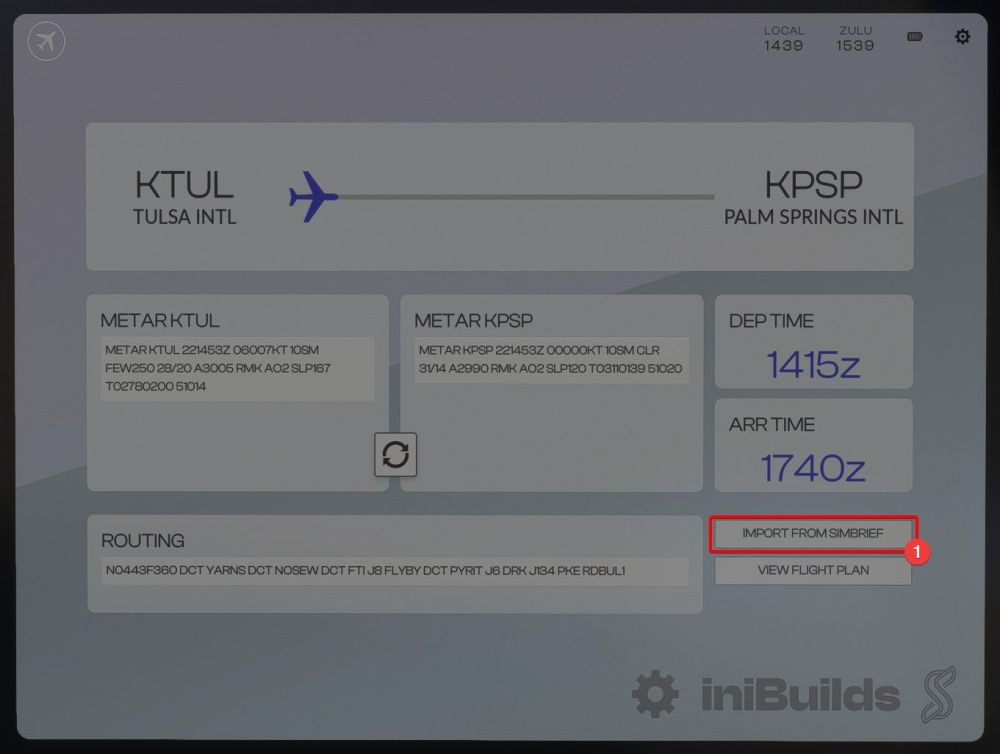

Click on the IMPORT FROM SIMBRIEF button on the bottom-right corner to populate the fields below and add your Operational Flight Plan (OFP) to the OIS.

Importing the flightplan into the EFB will automatically populate the charts app with your departure and arrival airports, as well as allow you to view your OFP from within the MY FLIGHT app.
