bug MCDU issues - ATSU/ATC pages - 1.03

[Der Michel]

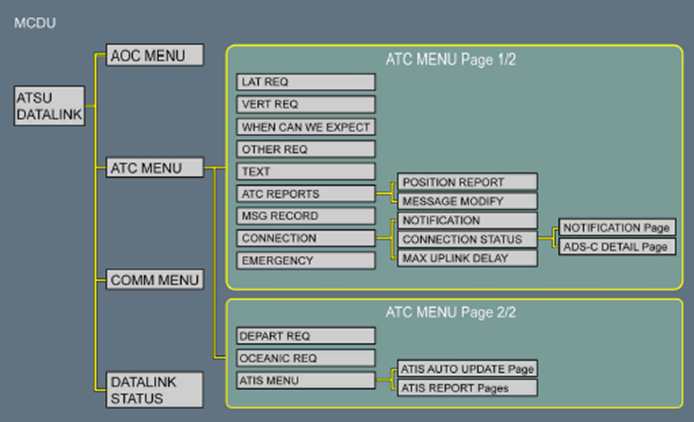

This is now a long post. I know that there are several different ATC submenu structures. But based on what is implemented, it's easy to determine the version. So the report is based on the correct version.

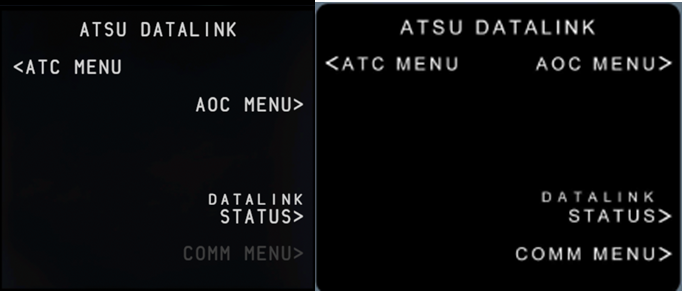

- move LSK2R to LSK1R

- gey out LSK5R, as it's not implemented

  and move the word datalink one column left

- LSK4R is missing

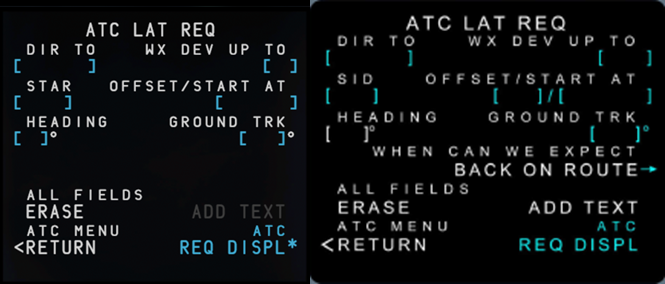

- LSK2R missing blue bracket

- LSK3R bracket has to me one column smaller

- LSK3 L&R is missing

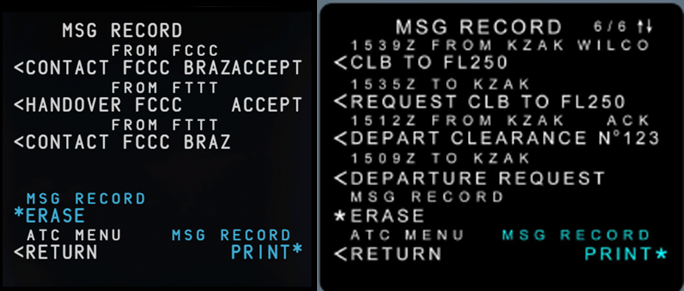

- MSG RECORD has to store all, and should be scrollabale

- add time stamps

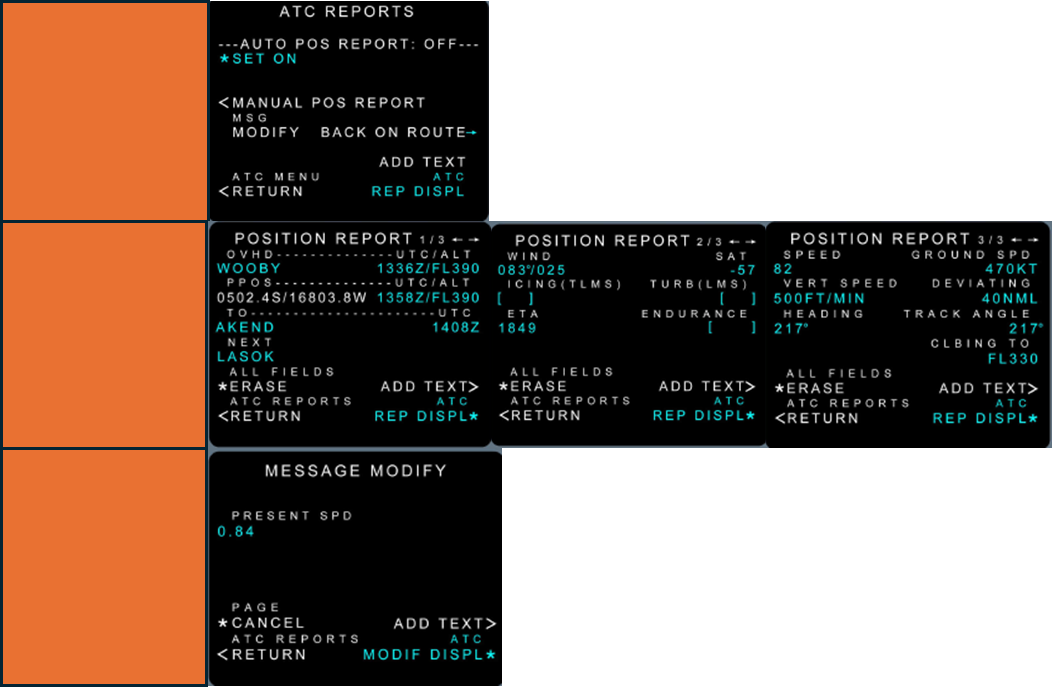

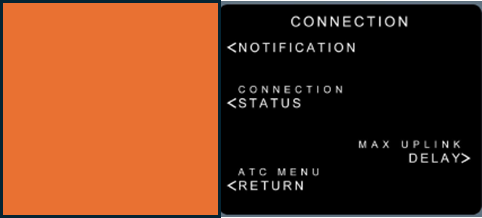

- connection page is missing

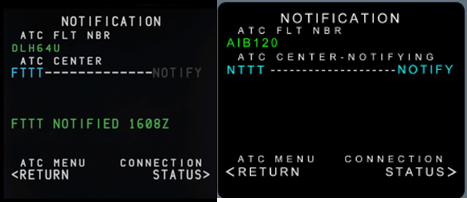

- LSK2L has to be boxed again, after completed notification

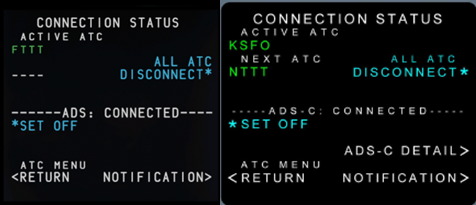

- LSK2R move ALL ATC one column left

- LSK2L: add label NEXT ATC in small font

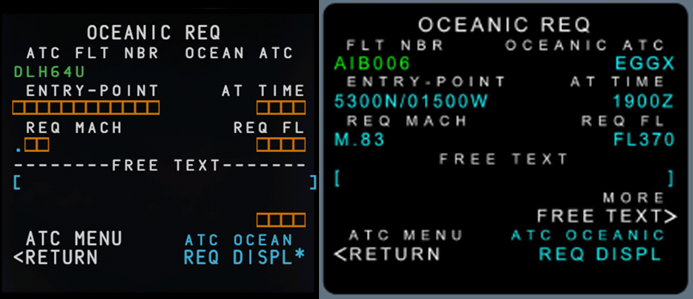

- Line 4, change to ADS-C

- Line 4, change label to small font

- LSK5R: add grey out ADS-C Detail

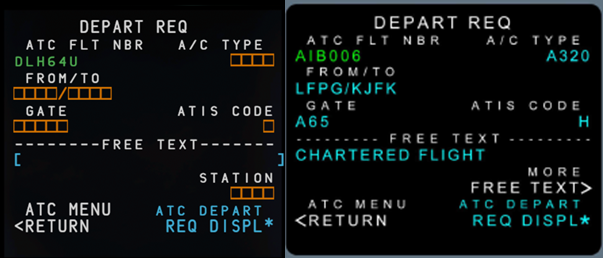

- add the missing content

- LSK5R, there is no longer STATION, but MORE FREE TEXT

- LSK6R change to ATC OCEANIC

- The logic behind LSK1,2L is missing

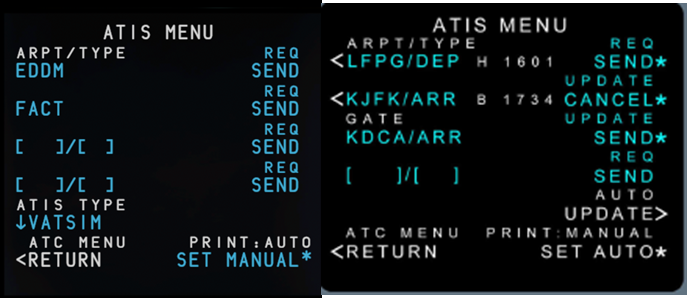

- Line 3 has the label GATE

- LSK6L, can we get SIMULATOR setting?

- LSK1,2R is missing *

- add LSK5R grey out AUTO UPDATE

- LSK6R: move PRINT: AUTO one column left

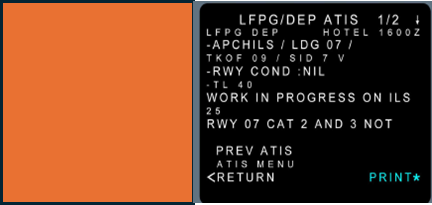

- the required page for ATIS REPORT function of ATC MENU page (LSK1-4L)

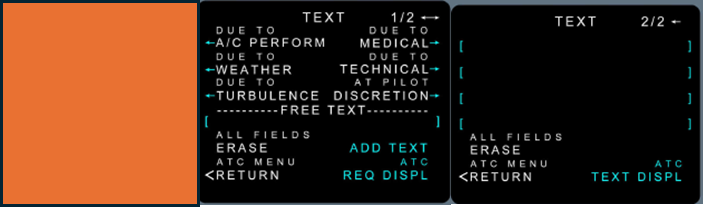

- please add the ADD TEXT / TEXT option

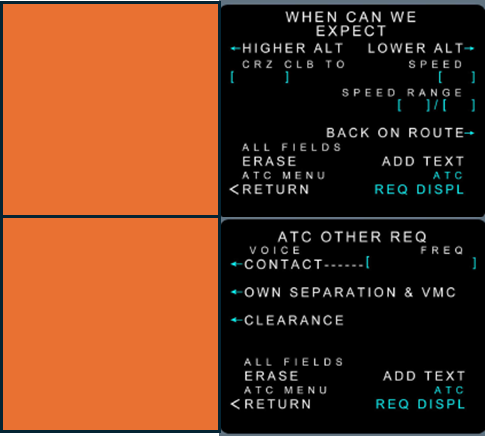

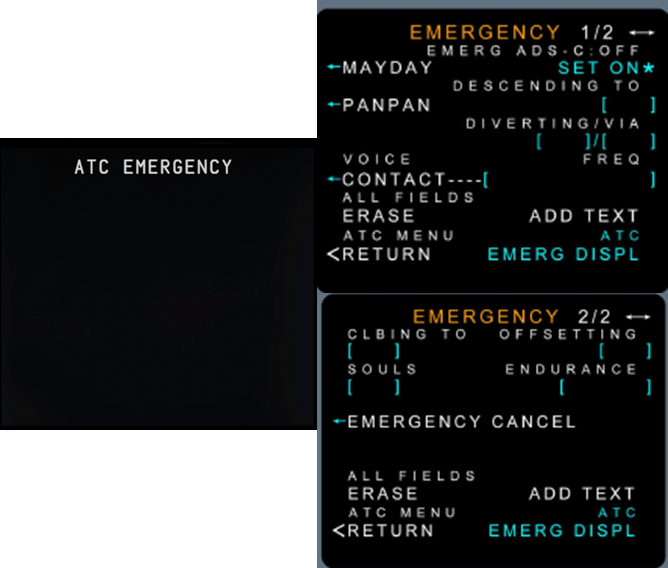

- please add also this pages

- please add also this pages

Edited November 17 by Der Michel

[Peter]

wow, thanks for all the hard work.. i hope they will implement tis stuff....

[Eddie]

Hello,

Logged, thank you!
