bug FMS issues - HOLD page - 1.03

[Der Michel]

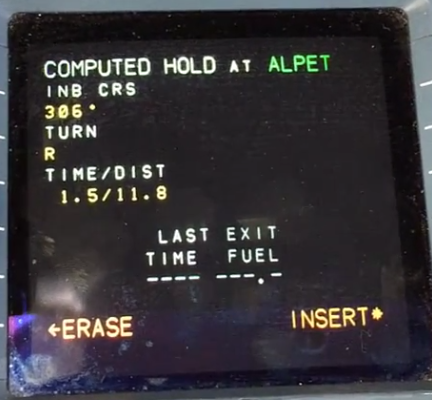

Entering the Hold at a Random Wpt in FPLN:

"The database has no holding pattern for the selected revised waypoint.
The system proposes default holding pattern data."

- change titel

- LSK1,2,3L all small font

- remove LSK1,2 R

- add LAST EXIT

- place the * on the right of INSERT

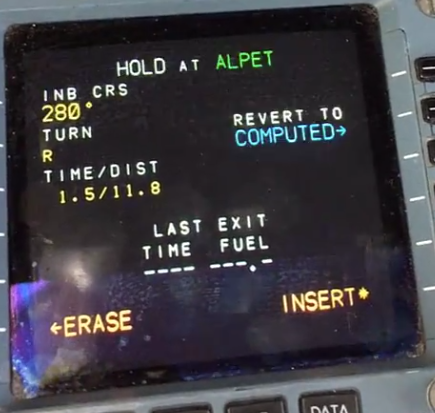

If that proposed is now edited it becomes a HOLD AT:

- as above but:

- changed value in large font

- changed titel

- add LSK2R  REVERT TO COMPUTED

---------------------------------------------------------------------------------------------------------------------------------------------------

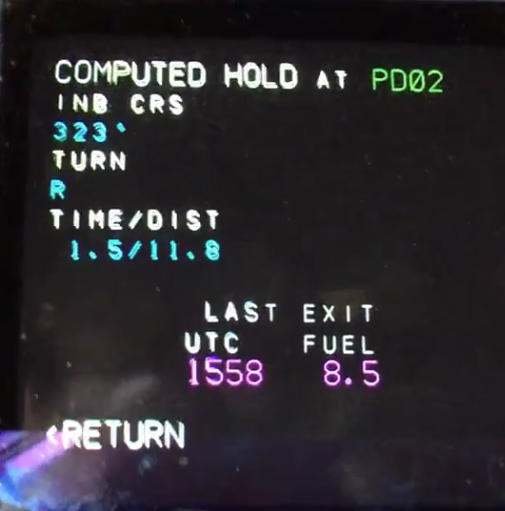

Now accessing a Database hold inside the F-PLN.

- use the name of the WPT FIX not HOLD R

- remove LSK1,2 R

- add LAST EXIT with magenta values in large fonts

- add return

- as long as it's not edited, it' no tmpy yellow. values in blue and small font.

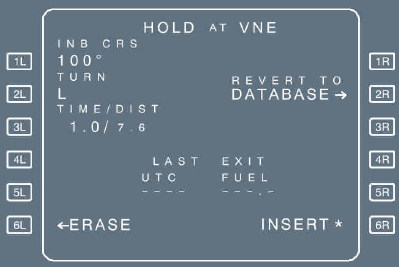

Now edited the Database Hold:

- now its edited and yellow

- as above but:

- changed value in large font

- add LSK2R  REVERT TO DATABASE

----------------------------------------------------------------------------------------------

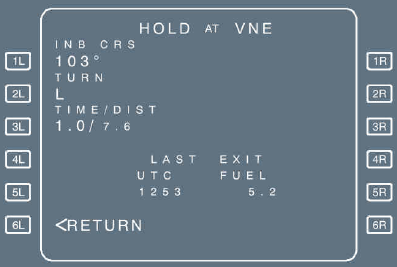

Example for a non edited Hold page

[Der Michel]

1.04

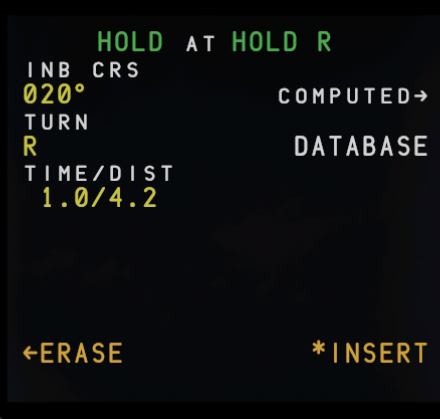

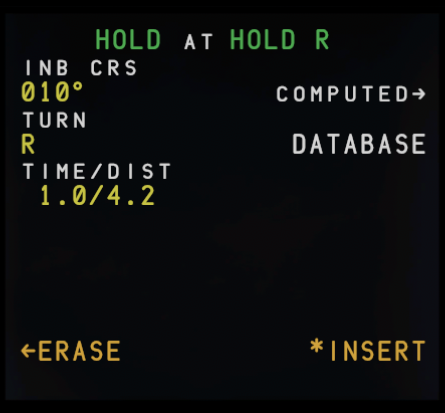

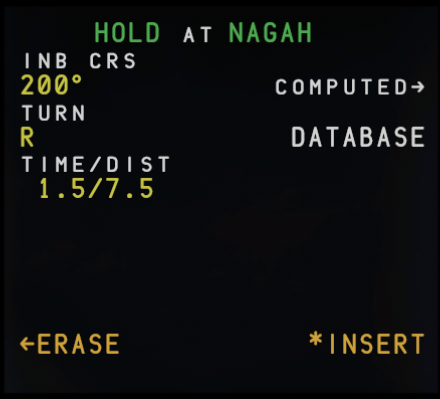

I have no idea what you are doing. You added now the COMPUTED HOLD at titel.

But your COMPUTED LSK1R and DATABASE LSK2R are THALES design. You are doing a HONEYWELL FMS.

Again you touched only a small item of the page. Why are you not correcting all in one step?

Please, fix it!
