bug FMS issues - EQUI-TIME POINT page - 1.03

[Der Michel]

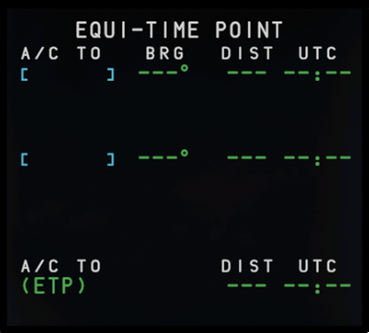

All sim-images on Ground:

1. dashes have to be white

2. UTC has to be TIME on ground

3. no : between dashes

4. LSK1R and 3R Time is only computed in cruise phase, otherwise it is dashed.

5. LSK5R refference WPT with / has to be moved 1 column left









[Der Michel]

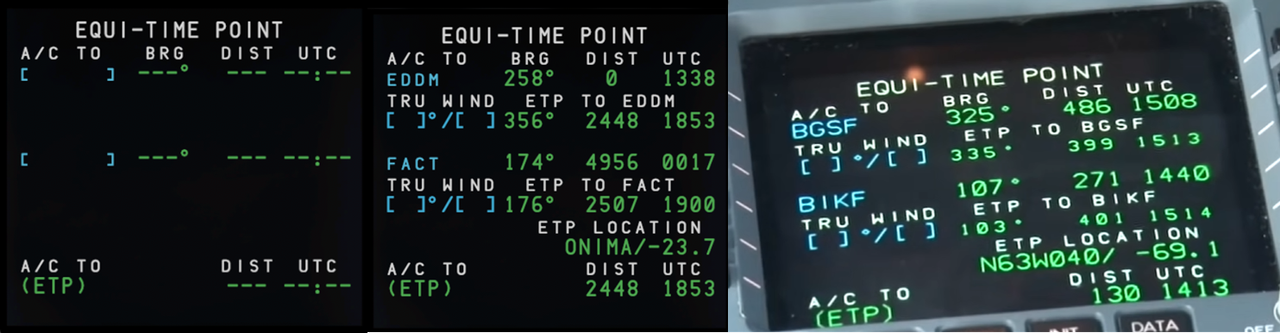

Another Refference for the empty FMS:

- LSK 1L and 3L should have large font brackets

- BRG has to be without °

- DIST should have 4 dashes

- and noticed on many pages, there is a raster/matrix in background. The drawn signs have all to fit in it. Something like for BRG and the dashed below shouldn't happen !!!

- LSK6L should be blank

- dahes all white (as above described)

- no ":" (as above described)

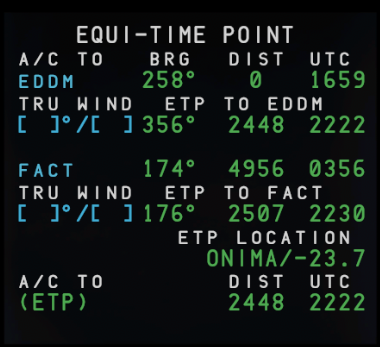

 during calcualtion





- values for ETP TO EDDM and ETP TO FACT have to be small font, becaseu they are based on teh default EDDM and FACT

- on Ground it has to be TIME !!

Edited November 15 by Der Michel

[Der Michel]

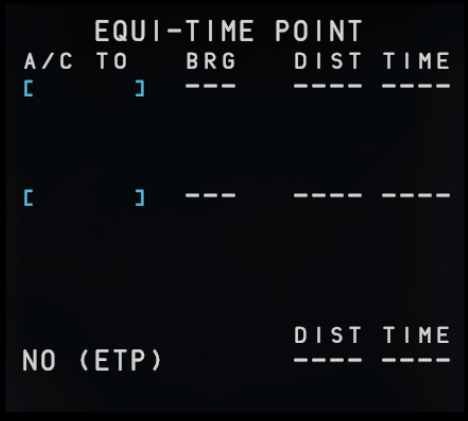

1.04 ....I know doing it correct in one step is hard..sorry for the sarcasm. What is the testing team doing? Have they any FCOM or refference?

But why now a new bug with that NO (ETP) ?

FCOM: "If at least one reference waypoint exists but no equitime point exists, the field is blank and NO ETP is displayed in 6L."

In this state we don't have any reference waypoint.

- LSK 1L and 3L should have large font brackets

- LSK6L should be blank



And the old bugs are still open

Edited yesterday at 08:39 AM by Der Michel
