How to - Update Navigraph Navdata

[richboy2307]

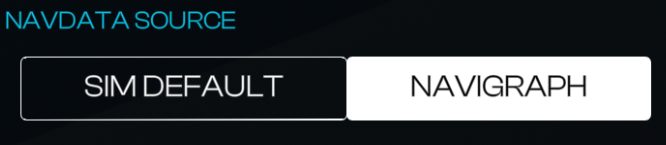

The iniBuilds A340 Airliner allows you to choose between 'SIM DEFAULT' and 'NAVIGRAPH' as navdata sources for the FMS. You can switch between these options through the Electronic Flight Bag (EFB) on the 3rd Party Settings page.

(Click to enlarge image)

The internal 'SIM DEFAULT' navdata is the default option, similar to all our previous airliners for MSFS - which means it will update whenever the sim navdata is updated by Microsoft.



If you swap to the 'NAVIGRAPH' navdata option, the default cycle is 2303 R1. Users with an active Navigraph subscription can update to the latest navdata version by linking their account through the EFB

Quote

Note: Changing navdata source will completely wipe the FMS data. You should only do this prior to completing your FMS preparation as a result.

Connecting to Navigraph

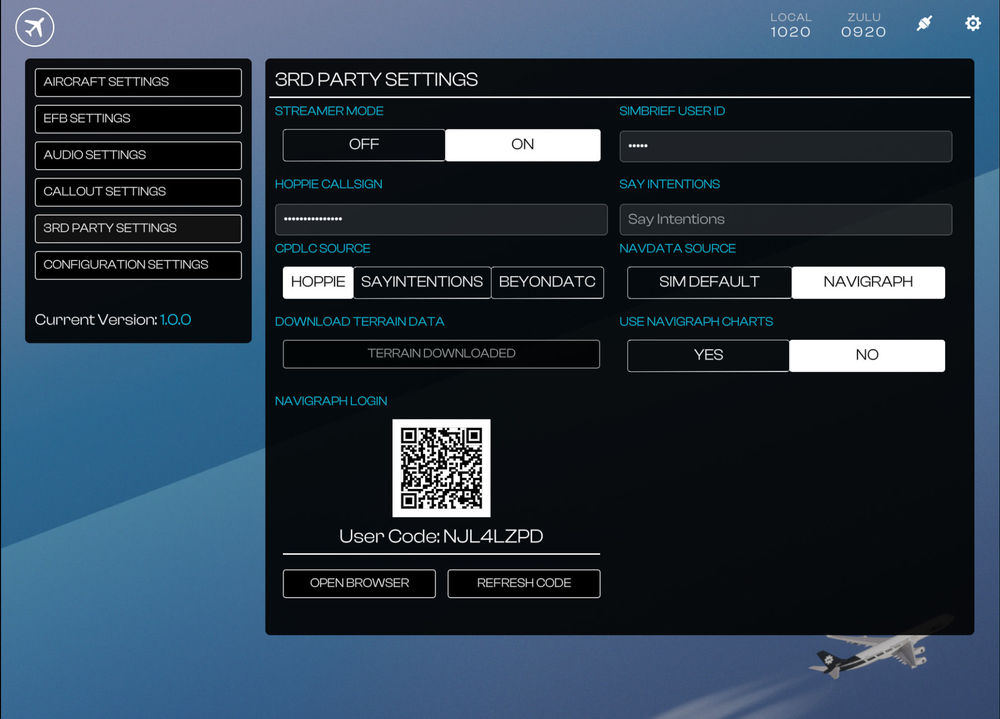

1. Navigate to Settings > 3rd Party Settings > Navigraph Login section on the EFB
2. Scan the QR Code or click the 'OPEN BROWSER' button to connect your Navigraph account
3. After you have completed the authentication steps, the EFB will update to show some new options - LOGOUT OF NAVIGRAPH and UPDATE NAVDATA along with the currently installed cycle.

Updating the Navigraph Navdata

1. Click the 'UPDATE NAVDATA' button
2. The button will change into a progress bar once download commences.
3. Once completed, the button will show 'NAVDATA DOWNLOADED' and the currently installed cycle will update to the latest available.

Quote

Note: This can ONLY be done on the ground without the engines running. This process requires an active internet connection and may take a few minutes whilst the data is downloaded from the servers.

Quote

Note: Updating navigraph navdata will completely wipe the FMS data. You should only do this prior to completing your FMS preparation as a result.
