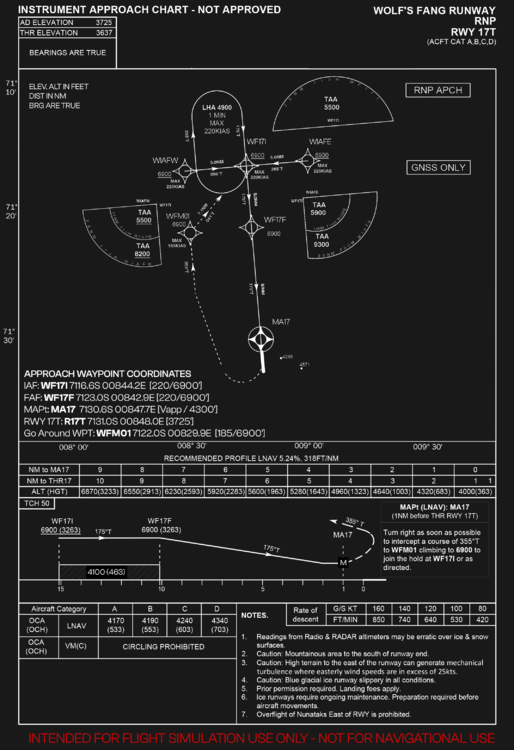

richboy2307 Posted yesterday at 10:43 AM Posted yesterday at 10:43 AM Wolf's Fang Runway IATA: WFR ICAO: AT98 (recognized via Navigraph Navdata / Simbrief only) LID: AT98 AD Co-ordinates: 71° 31′ S, 08° 48′ E (FMS Format: 7131.0S / 00848.0E) AD Elevation: 3725' / 1127m AMSL Rwy Length: 8200' / 3000m Rwy Width: 196' / 60m Rwy Orientation: 175 True (175T) Rwy Declared Distances: TORA AND LDA 2500m / TORA AND ASDA – 3000 m Common Routes (FACT - AT98) You may use any of these below on Simbrief for planning purposes IMSOM UQ36 APKIN UL211F ITLIK 3713S 4112S 4811S 6209S 6808S GEPAB 4018S 5016S 5814S 6412S 6810S 7008S IMSOM UQ36 APKIN UL211F ITLIK 3615S 4014S 4513S 5013S 5513S 6012S 6511S 7010S You may also append the following waypoints from the approach segment for the final part of your flightplan as necessary 711635S0084411E 712133S0084525E 713034S0084741E Suggested Approach Custom Waypoints You may create these custom waypoints in your aircraft FMS for a straight in approach to RWY 17T IAF: WF17I 7116.6S 00844.2E [220/6900'] FAF: WF17F 7123.0S 00842.9E [220/6900'] MAPt: MA17 7130.6S 00847.7E [Vapp / 4300'] RWY 17T: R17T 7131.0S 00848.0E [3725'] Go Around WPT: WFM01 7122.0S 00829.9E [185/6900'] *Note: These are approximate waypoints and will keep you on path but once you have the runway in sight, you should proceed visually. 3 1 3 Vrishabh Sehgal ( @Richboy2307 ) Community Team Member & Tester iniBuilds Ltd. | inibuilds.com
