GO AROUND mode not engaging during visual and RNAV approaches

[Capibara]

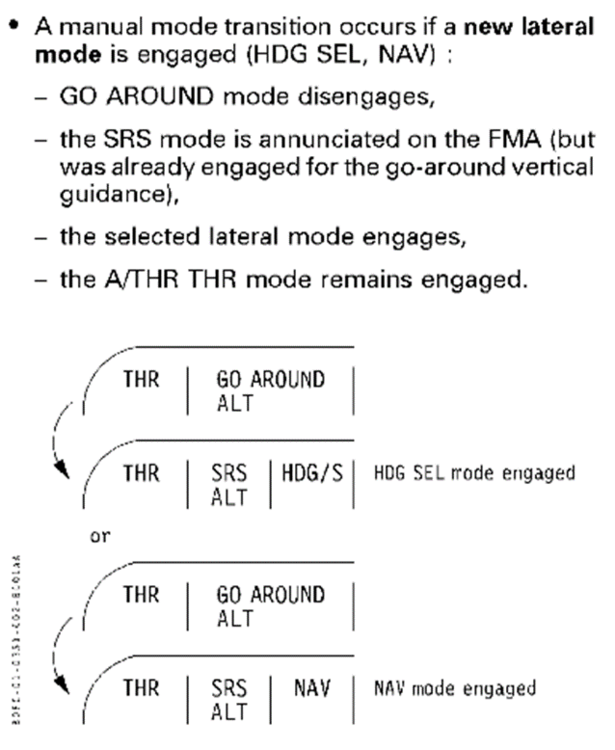

While simulating a low level go-around during a visual approach into EHAM, with only the FPV on, I noticed that the GO AROUND mode did not engage. Instead GO AROUND briefly flashed after I pushed the toga button, and immediately SRS | HDG was shown on the PFD instead. According to the FCOM, GO AROUND mode should always activate when the toga button is pushed while flaps or slats are extended. GO AROUND mode should then stay engaged until another mode is manually selected or the missed approach altitude is captured. Also, the auto throttle did not re-engage automatically, which should according to the FCOM. I also tested this for an RNAV approach in PROFILE mode and the same thing happened. During an ILS approach it did seem to work correctly.









Edited September 14 by Capibara
Removed duplicate image
