bug OIS - T.O Perf is importing wrong values and calculates wrong.

[Der Michel]

The Runwaylength is not necessarily the max TORA. As in this EDDL example.

EDDV for example has a TORA extension larger then regular runway length.

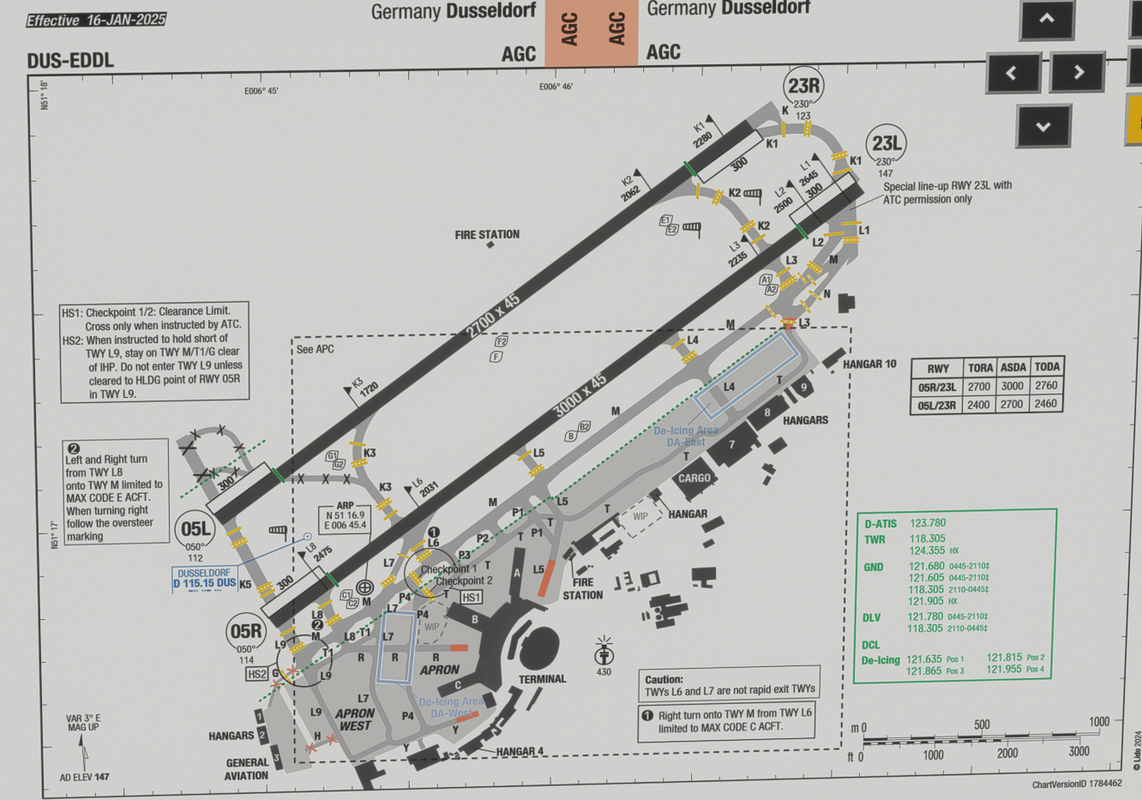

EDDL has a 23L Runway of 3000m with 300m stop margin. So the max TORA is 2700m. Not all charts offer ASDA and TODA, but TORA.

The import of the correct TORA would be fantastic. Do we need to indicate ASDA and TODA?

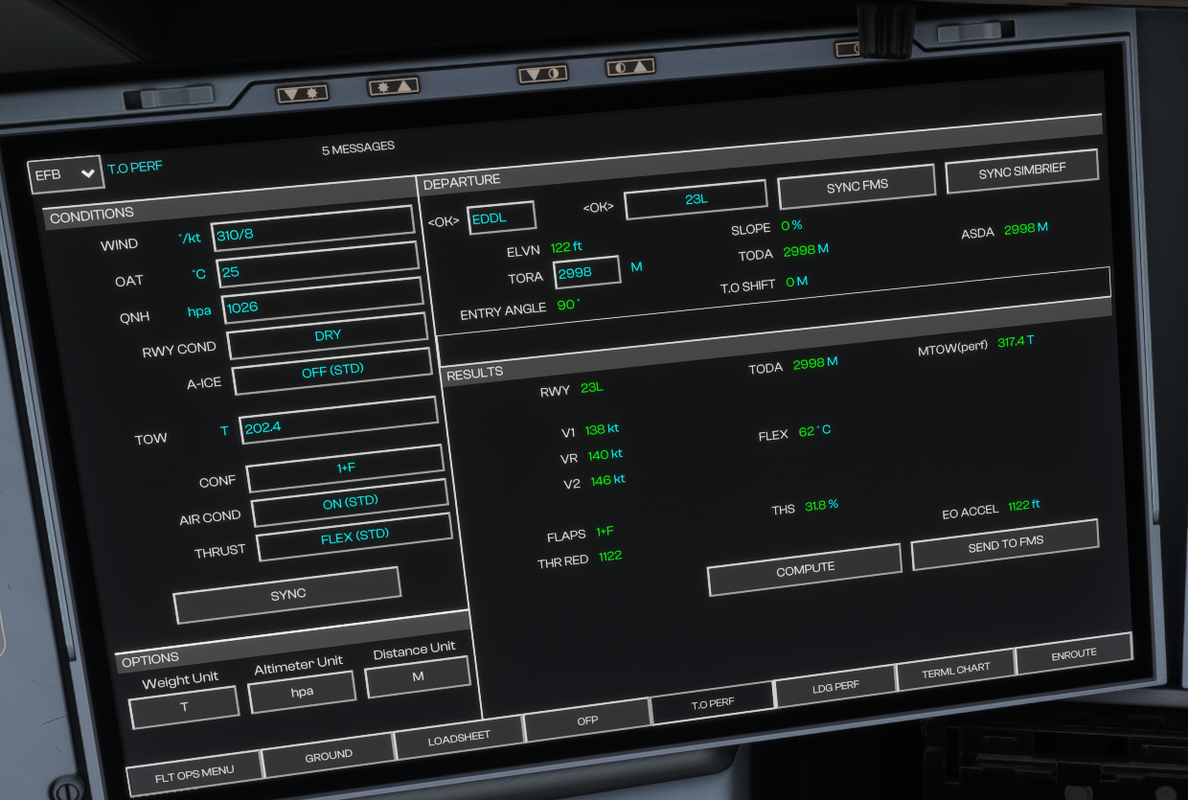

EDDL23L example:

ASDA with 2998 almost correct -> Chart 3000

TORA with 2998 wrong -> Chart 2700

TODA with 2998 wrong -> Chart 2760

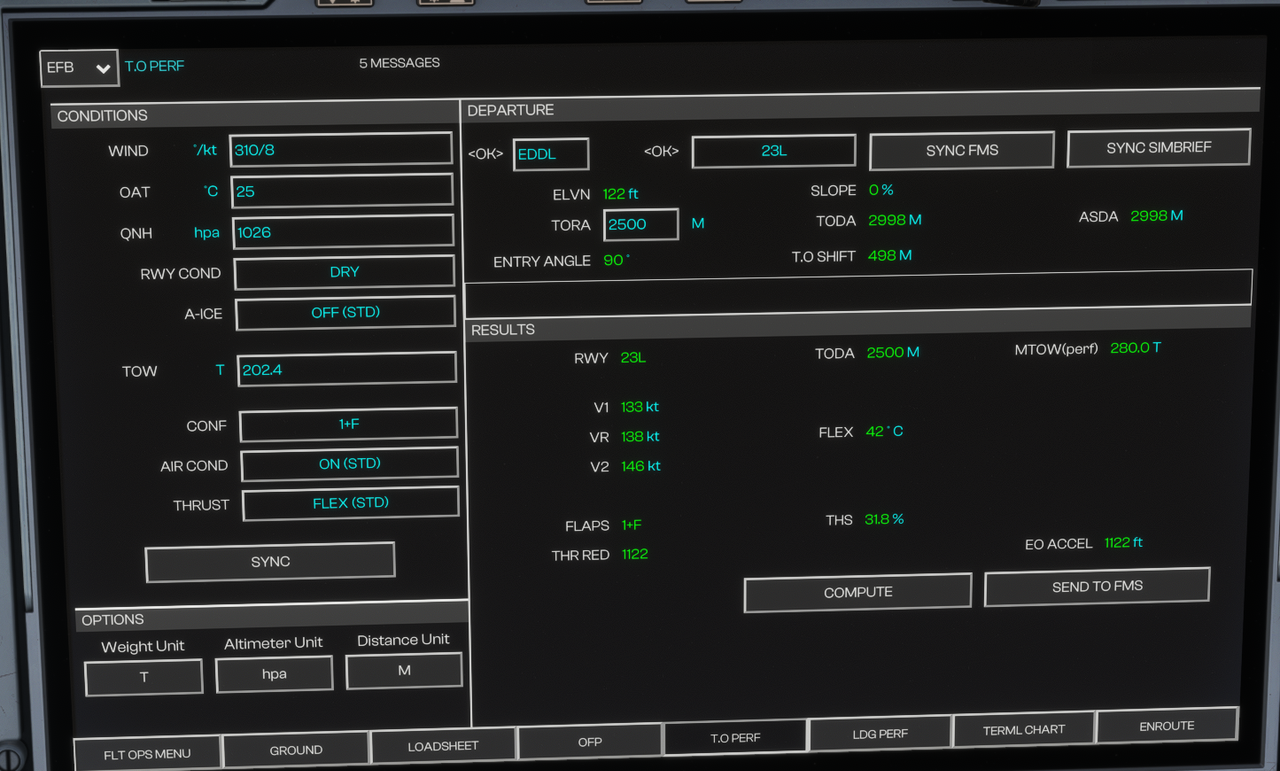

When I manually enter TORA 2500 for L2 int the system calculates wrong T.O SHIFT, TODA and ASDA.

Correct T.O SHIFT is 200 (TORA full - TORA L2)
Correct ASDA is 2800 (ASDA full - T.O SHIFT)
Correct TODA is 2560 (TODA full - T.O SHIFT)





Edited Monday at 07:41 PM by Der Michel
