bug VD - ND - FPLN - CA-Leg - 1.0.12

[Der Michel]

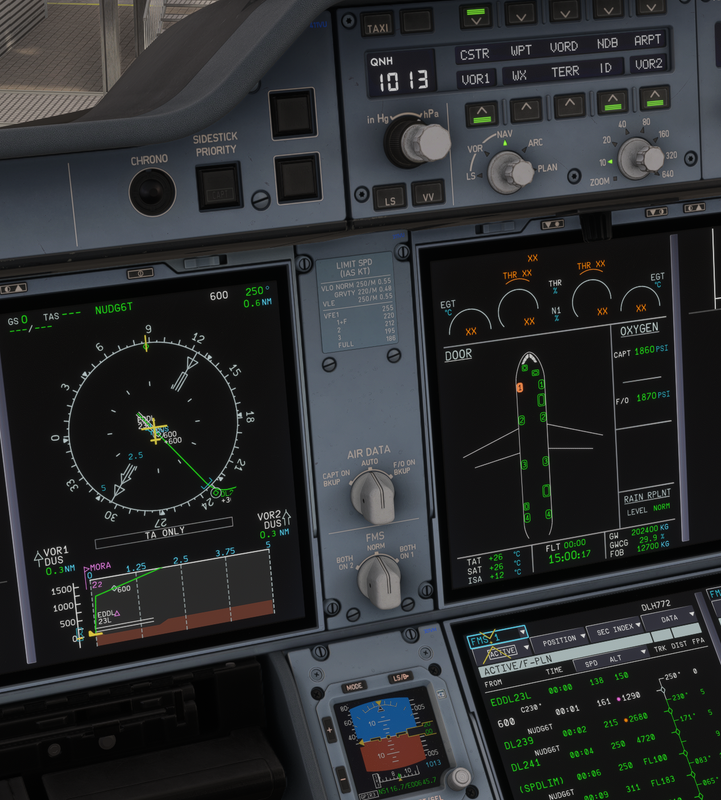

Let's look again at the CA-Leg type in conjunction with VD-ND-FPLN.

- at the ND the 600 wpt is behind the runway
- at VD it's in the middle of the runway

And again the CA WPT is still indicated as a  regular lateral fixed WPT with constraint. THAT'S WRONG !!!!!!!!!!!!!!!

1. A CA or VA or FA is only vertical fixed. Lateral it is linked to the aircraft performance - VNAV. So depending on the climb performance the lateral position has to be adjusted!!!!!!

2. There shouldn't be any asterix next to it in the F-PLN. Because it's NO regular constraint !!!!!

3. The vertical profile can't start at the rwy treshold, calculate the required takeoff roll and the point of lift off  !!!!!
