bug ND, PFD, FMS - Approach KEWR 29 Y (RNP) - 1.0.12

[Der Michel]

So many bugs in just one approach....some already covered in other posts and not mentioned in the following list

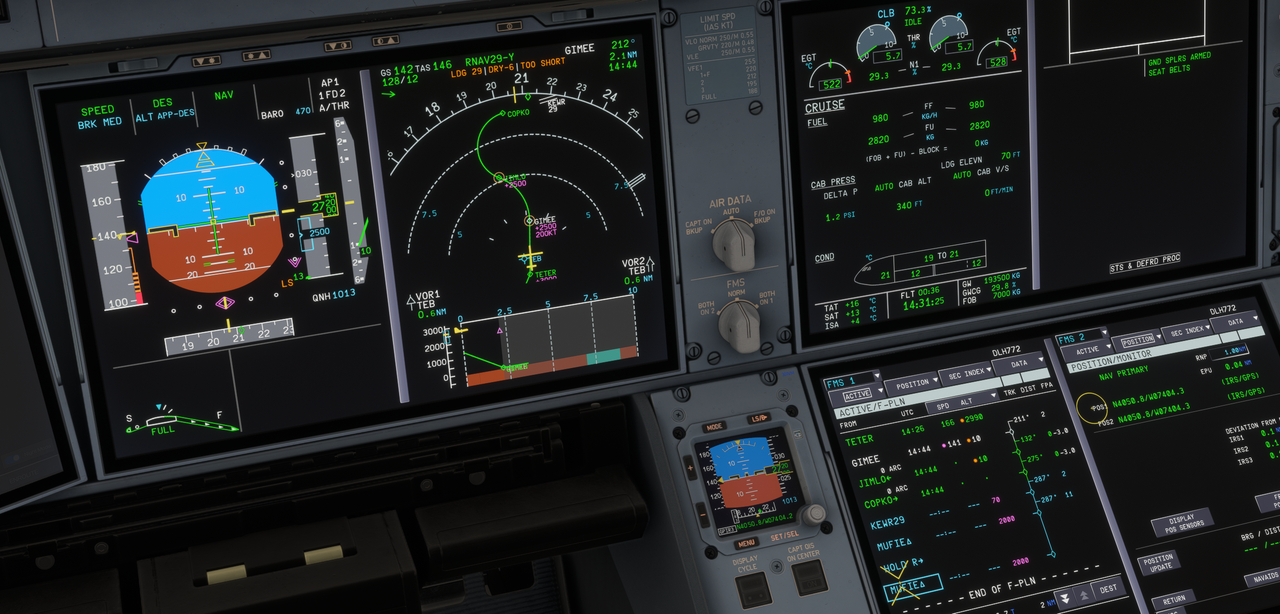

1. VNAV calculation at F-PLN...wrong...sorry but why is the VNAV ignoring the constraints?   TETER +3000, GIMEE +2500, JIMLO +2500
2. VD complete wrong because of VNAV
3. ND missing VD bracket

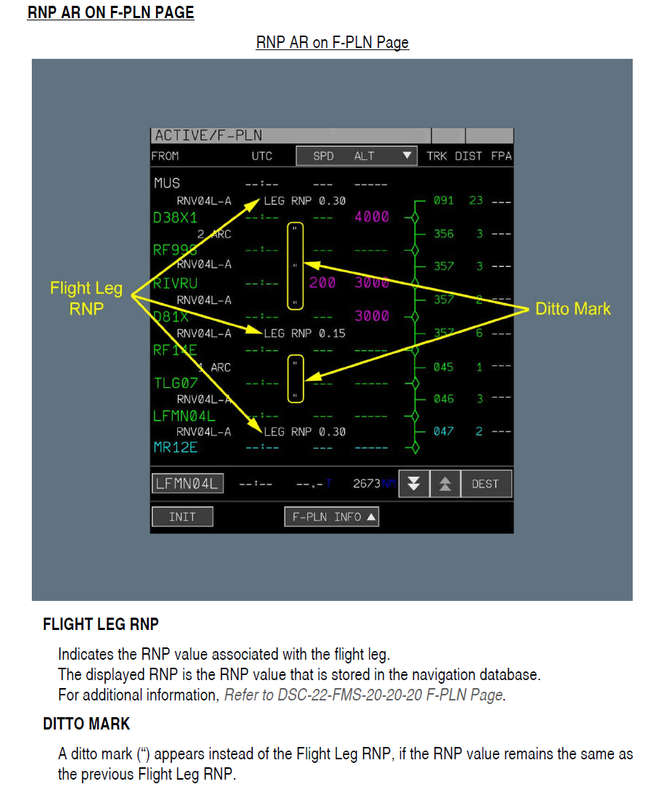

4. PFD missing LDEV, VDEV and RNP AR  --> FSL was deselected --> shouldn't be necessary (nr.6)

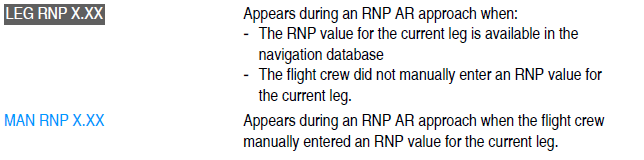

5. ND missing LEG RNP message: at this position: "LEG RNP 1.00"

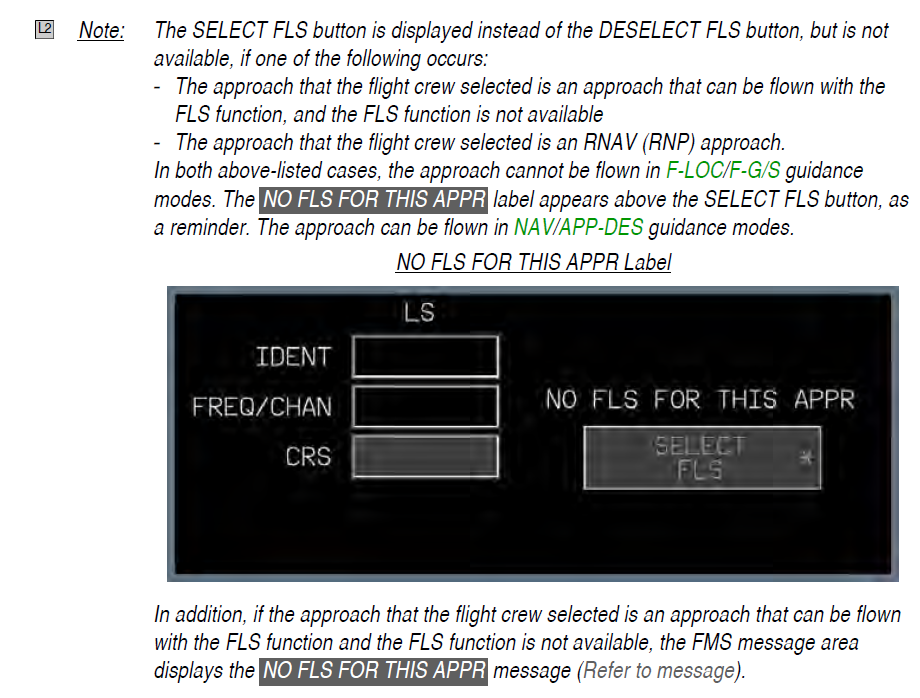

6. I had to deselect FLS manually....RNAV RNP can't be flown with FLS in reallity--> greyout the associated button!!
7. LEG RNP missing at F-PLN
8. KEWR29 should be part of the active FPLN and green!

The Route I used:
KBOS/4R PATSS7 PATSS DCT NELIE FLOSI4 KEWR/29
I deleted the wpt after NELIE to TETER manualy.







Edited Monday at 07:11 PM by Der Michel
