bug SURV - TAWS system issues - 1.0.10

[Der Michel]

GPWS OFF memo is missing:

TAWS FLAP MODE OFF memo is missing:

TAWS G/S MODE OFF OFF memo is missing:

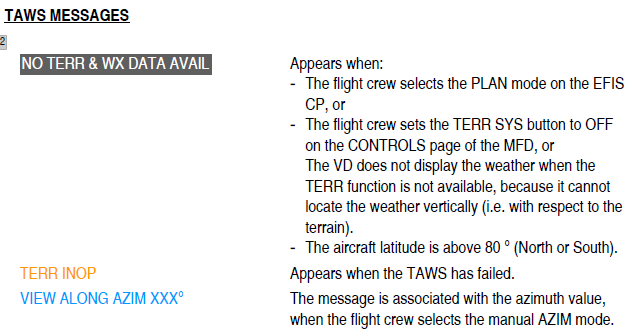

TERR SYS OFF message missing at ND:

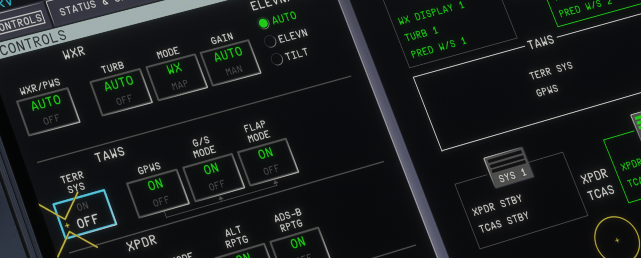

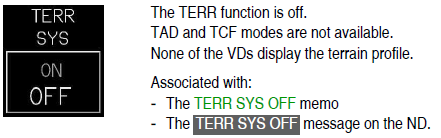

Buttons should lokk this, if GPWS is off:

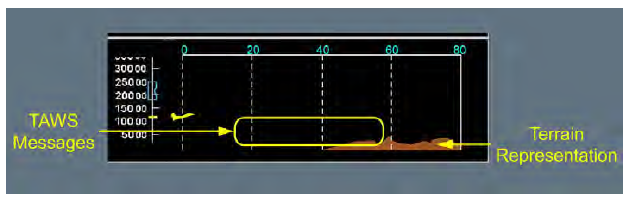

Currently the PLAN mode doesn't show the VD, but using the space to indicate the route. That's wrong:

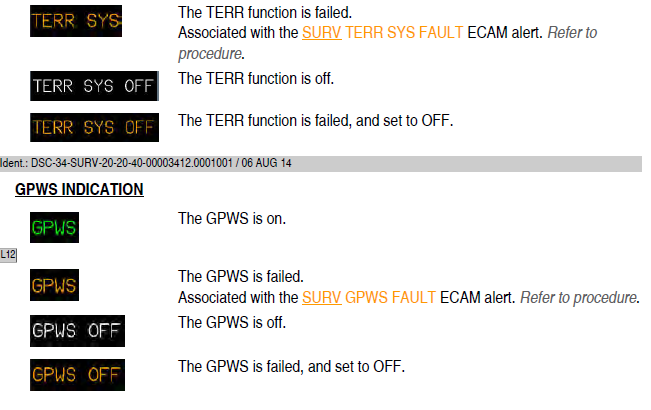

At STAUS&SWITCHING page the both GPWS and TAWS should be independet an as follows:





Edited Wednesday at 08:50 AM by Der Michel

[Eddie]

Thank you. Passed this one to the team as well 🙂

[Der Michel]

Thanks, here is one wrong item in FCOM. The PLAN doesn’t show the VD in IRL. So that point was wrong in my topic post.
