bug SURV - WXR system issues - 1.0.10

[Der Michel]

I know there is no proper WXR in MSFS. But you modeled certain funtions as mokup. But not correct:



GAIN+Value have to be white+cyan at the ND:

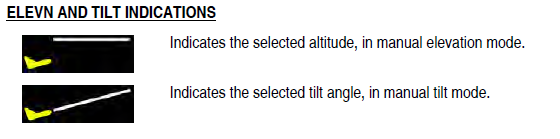

ELEVN mode is missing the value box and should be cyan:



TILT+ value have to be cyan at ND and TILT value box has to show the default value:



WX TURB OFF memo is missing:



MAP has to be cyan at ND and MFD:



If WXR is off, the other buttons should show:



WXR OFF missing at ND, when OFF but ticked at CP/EFIS:

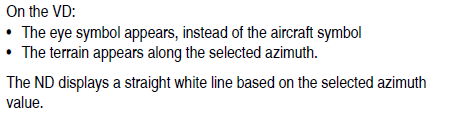

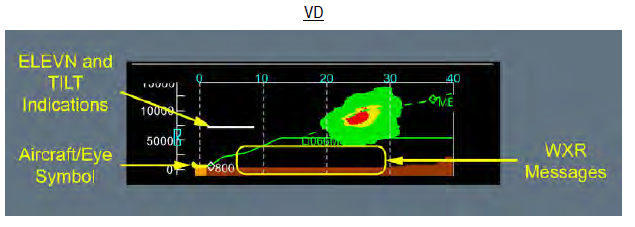

VD is missing the white lines:

VD AZIM is not working:



The SURV panel has no function (ELEVN, GAIN, VD AZIM):

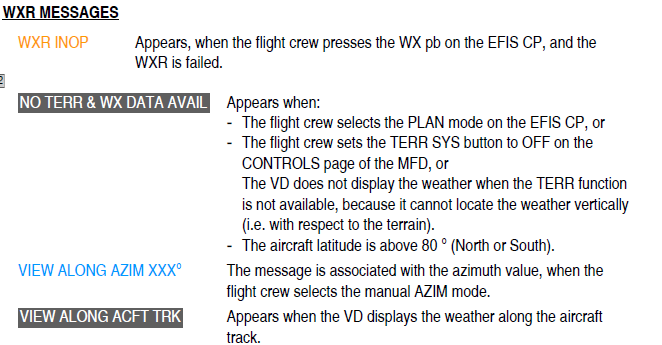

WRX messages are missing:

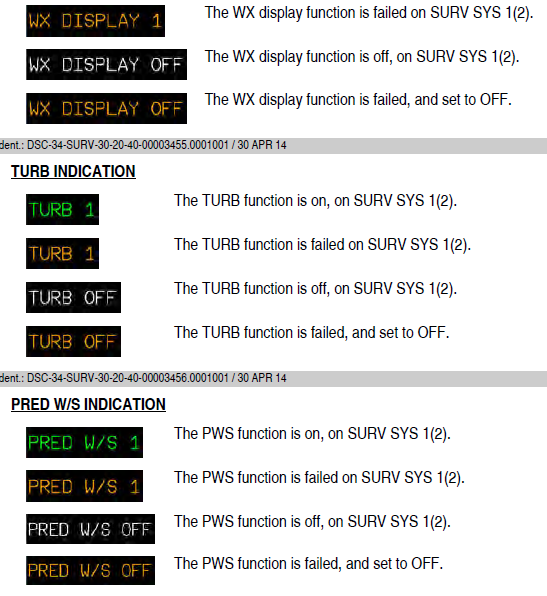

SURV/STATUS&SWITCHING page is not working at all as intended:





Edited May 21 by Der Michel
