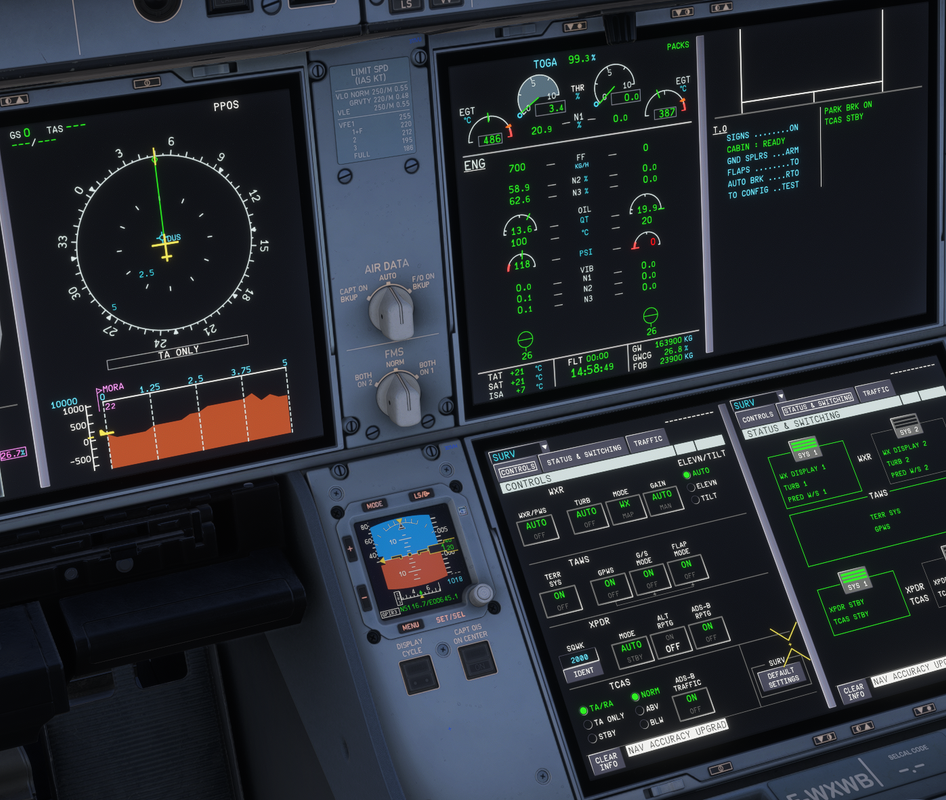

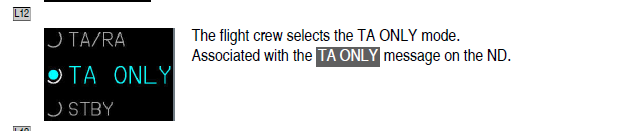

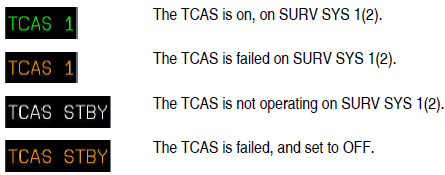

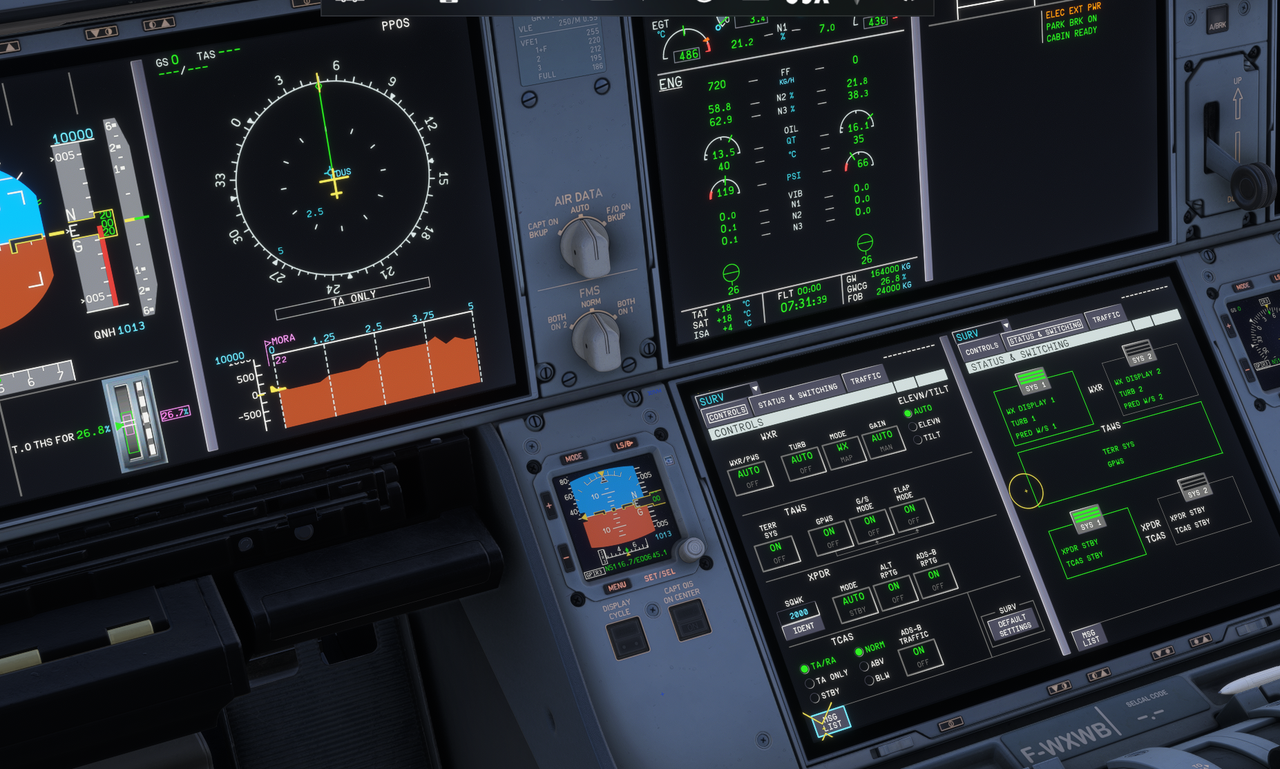

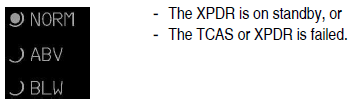

Der Michel Posted May 19 Posted May 19 (edited) 1. ND has to indicate TCAS STBY, like MEMO, when ALT RPTG is OFF. TCAS MODE list and TCAS DISPLAY MODE list have to be grayed out, when TCAS is in STBY. (Picture 1) 2. The STATUS SWITICH PAGE has to indicate TCAS STBY in WHITE, when ALT RPTG is OFF. (Picture 1) 3. TA ONLY has to be blue (Pictures 2) 4. ND: amber TCAS is indicated when the TCAS is failed (the case, when IRS off), and the TRAF pb is pressed on the EFIS CP. (Picture 3) So in this case it shouldn't be visible. 5. PFD should show an amber TCAS, when the TCAS is failed (the case, when IRS off).(Picture 3) and 6. Check Colors for STATUS SWITICH PAGE. There shouldn't be a green TCAS STBY, but an amber TCAS 1(2) when TCAS failed: (Picture 3) and 7. TCAS DISPLAY MODE and TCAS MODE have to be disabled when TCAS failed: (Picture 3) and 8. TCAS area titel has to be amber when TCAS failed: (Picture 3) and 9. Check the STATUS SWITICH PAGE: When set to default, the XPDR and TCAS shouldn't be STBY, but active green TCAS 1 (2). See Picture 4 Picture 1: Pictures 2: Picture 3: Picture 4: Edited May 20 by Der Michel 1 Specs: CPU-13900K, RAM-64GB-6800, GPU-4090
