bug FMS - ND - VD - CDA function display - 1.08

[Der Michel]

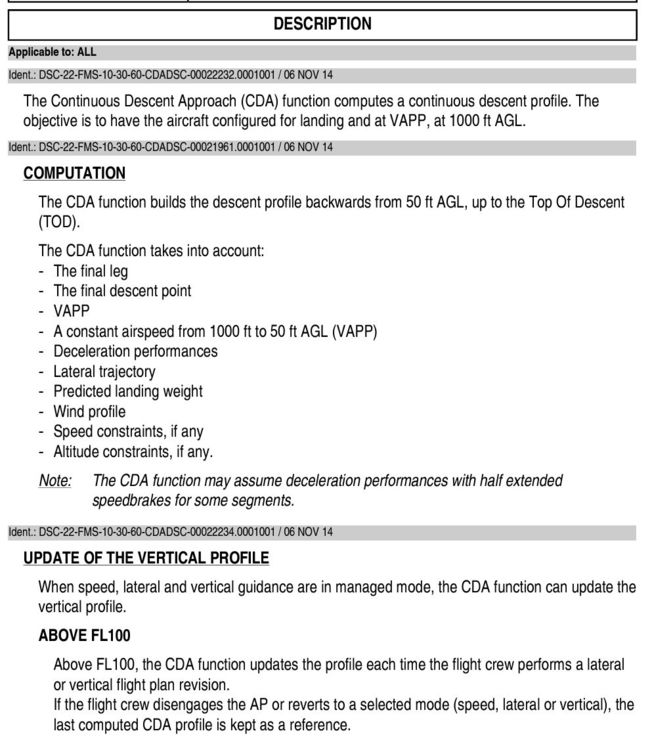

There is some inconsitency regarding CDA, if this is modeled by iniBuilds.

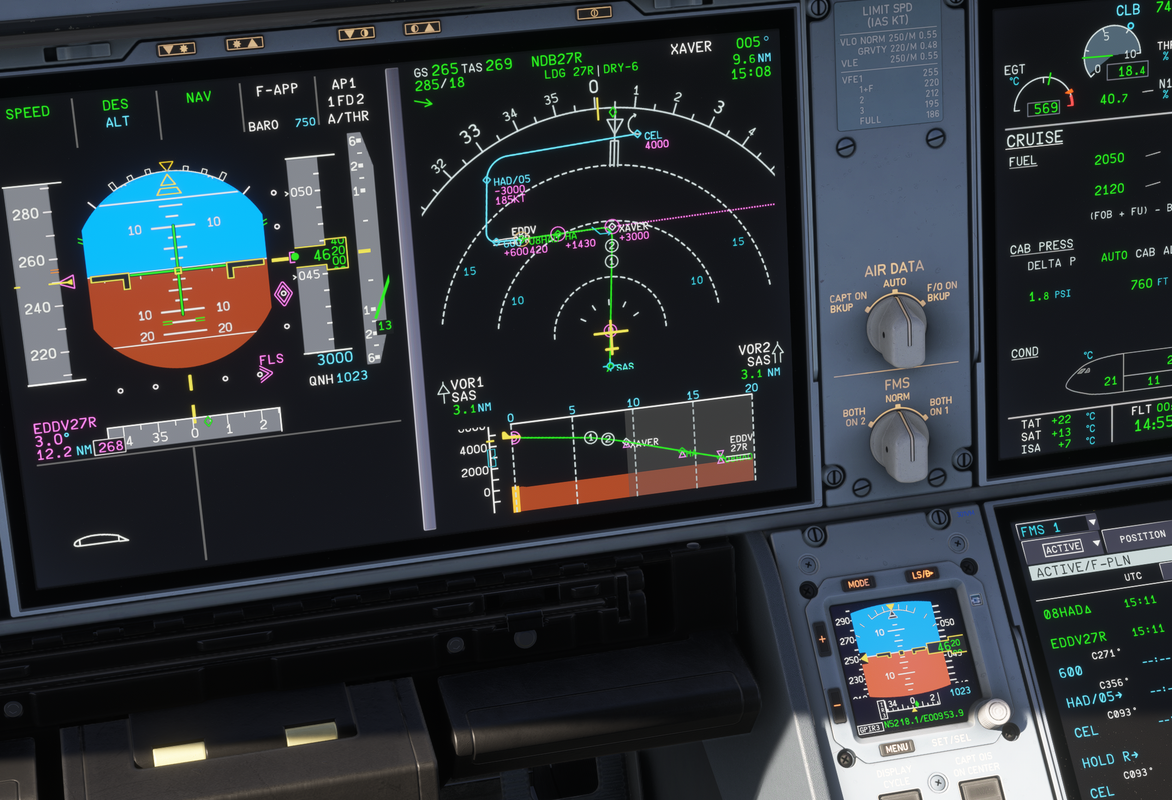

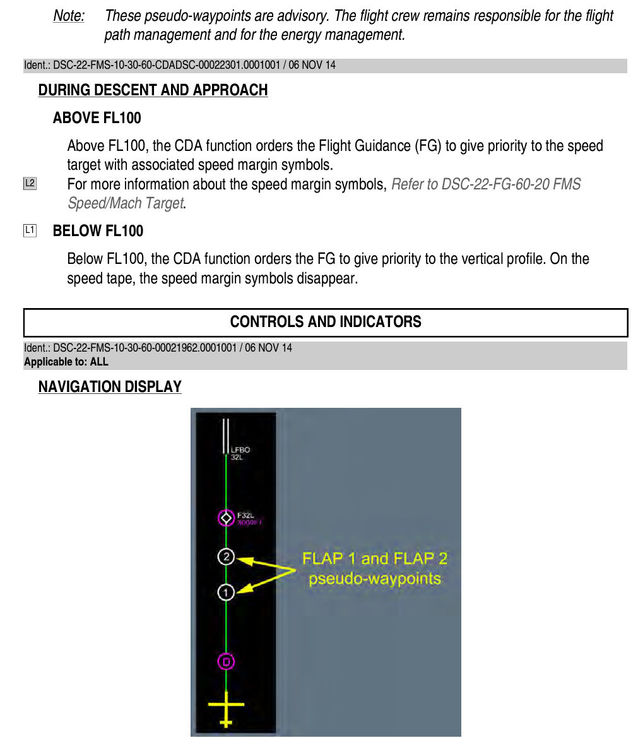

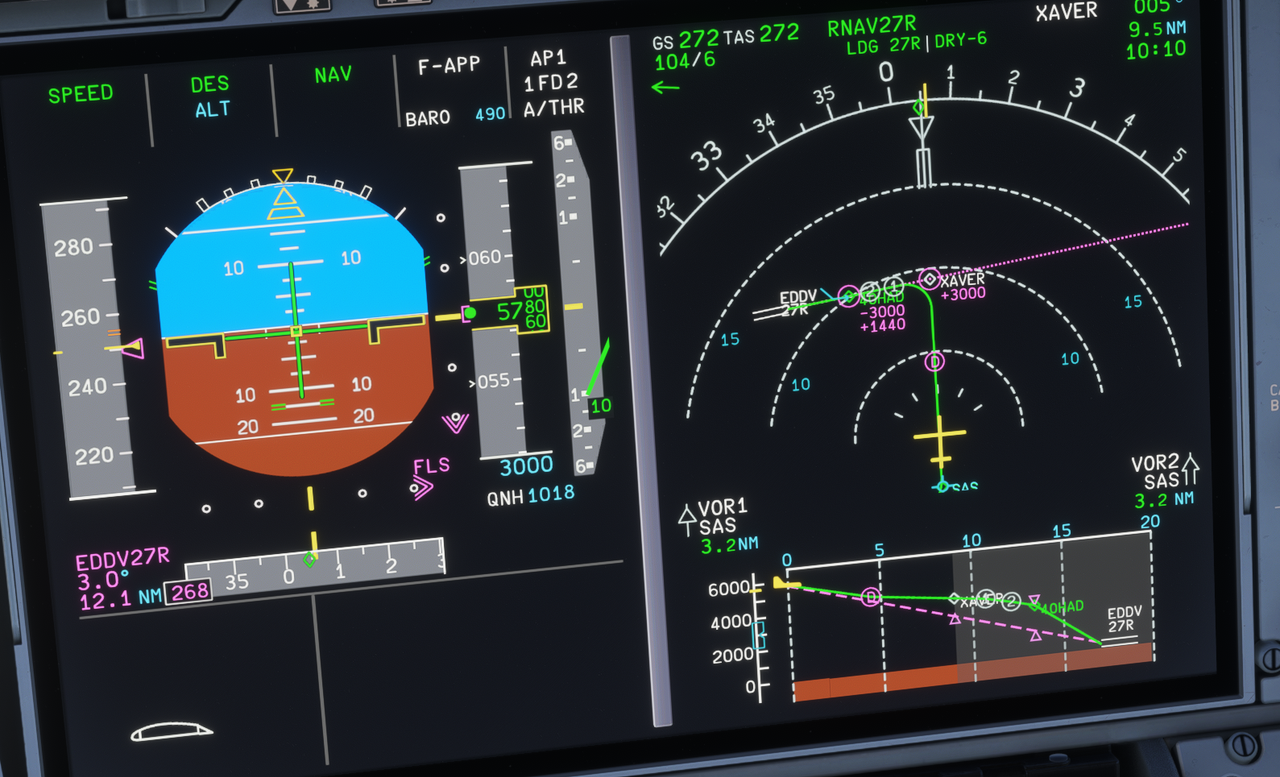

I have two circles with 2 in it at the VD. But not at the ND. Also are two "2" wrong, it should be "1" and "2".

ND



VD

Edited 18 hours ago by Der Michel

[Der Michel]

Let me add some more information. If iniBuilds is doing CDA, it’s currently just wrong.

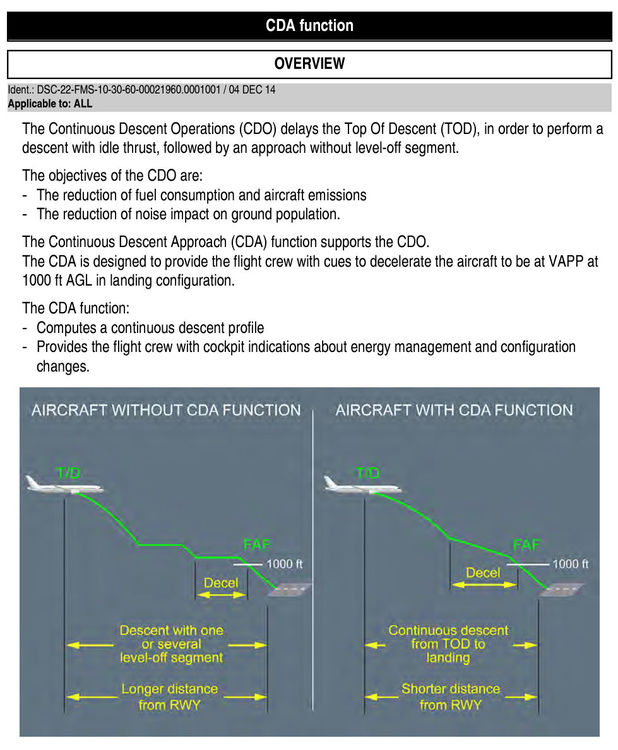

There shouldn’t be any level off decel segment prior FAF. That's the meaning of CDA.

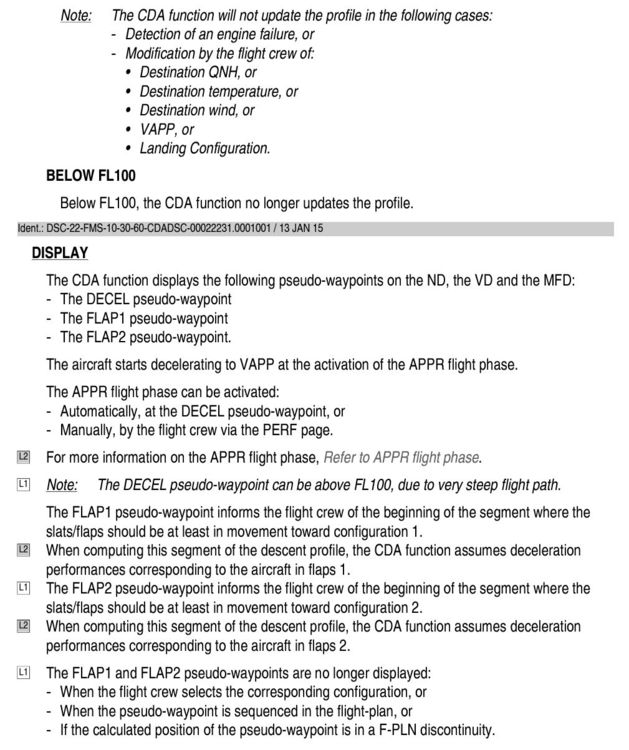

Btw: Also the MFD (FPLN) should indicate that pseudo waypoints.



Edited yesterday at 06:43 AM by Der Michel

[Hakatree]

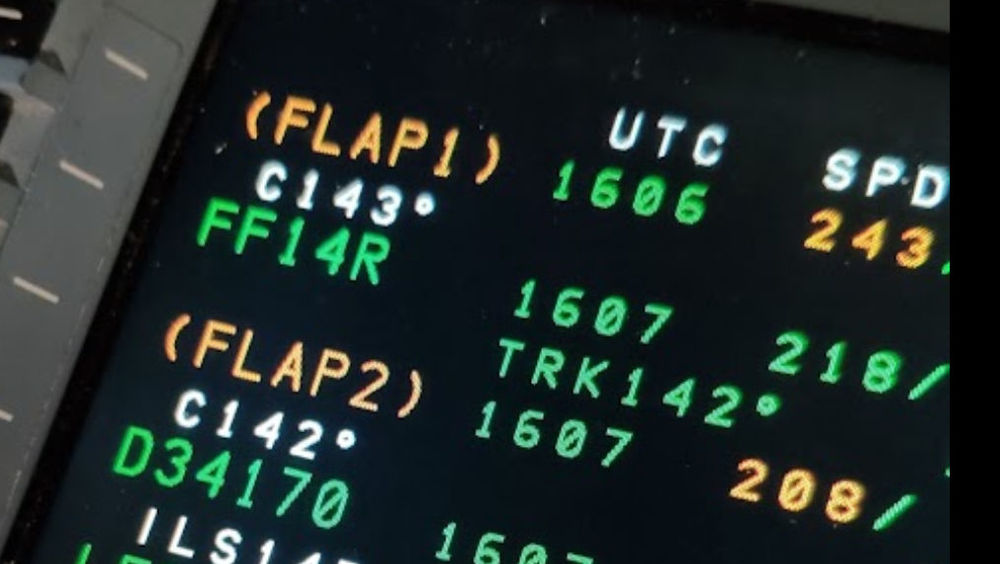

I was wondering the same, Im not pilot, but learning from watching videos and reading the manual, I noticed that in the MFD the flaps psudo waypoints aren't shown.

[Der Michel]

@Eddie also tracking/forwarded this one?

Edited 18 hours ago by Der Michel
