How to - Change Weather Radar (WXR) / Terrain Awareness and Warning System (TAWS) Modes via the Surveillance (SURV) MFD Page

SYSTEM OVERVIEW

The Surveillance (SURV) system consists of the following system that perform surveillance functions:

• Traffic Collision Avoidance System (TCAS)
• Automatic Dependent Surveillance - Broadcast - Traffic (ADS-B Traffic)
• Transponder (XPDR)
• Weather Radar (WXR) system
• Terrain Awareness and Warning System (TAWS)

This FAQ will cover the WXR and TAWS features of the SURV system. For TCAS, ADS-B Traffic and XPDR systems, see:

SURV - CONTROLS AND INDICATORS

The SURV system functions can be controlled via

1. SURV Panel on the Pedestal
2. SURV Page on the on the MFD


(Click to enlarge image)

1. SURV Panel on the Pedestal

For the purpose of this guide, we are only interested in the WXR SYSTEMS and G/S Mode pushbutton of this panel.

• G/S Mode Pushbutton: Toggles the GPWS (Mode 5) function which monitors for excessive descent below the glide slope. A white OFF light is on when this is switched off.
• WXR SYS1 / 2 Pushbuttons: Toggles the primary SURV system responsible for interpreting Weather Radar Antennae data.

(Click to enlarge image)

2. SURV Page on the MFD

For the purpose of this guide, we are only interested in the WXRand TAWS CONTROLS sections of this page.

To access the SURV page on the MFD,

• Select SURV from the MFD Page Options List at the top left corner of the MFD, OR
• Press the SURV shortcut key on the KCCU

(Click to enlarge image)

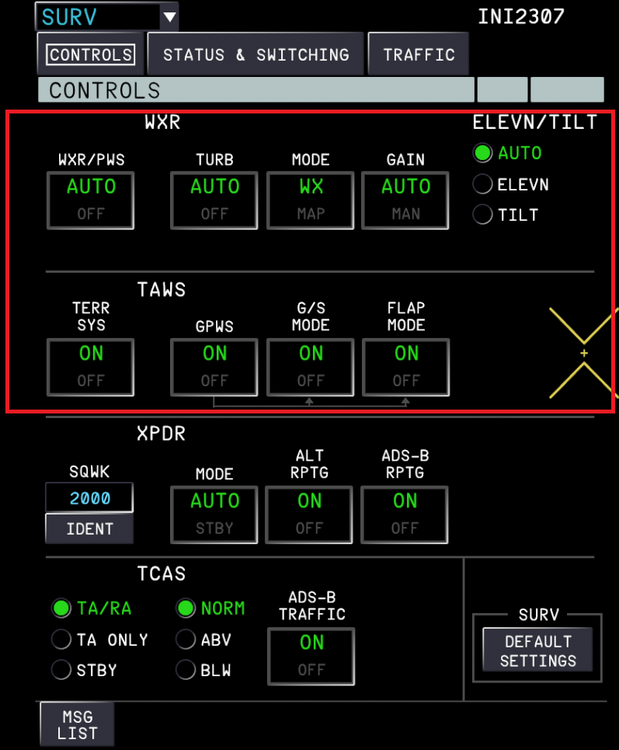

CHANGING WXR MODES - MFD SURV CONTROLS PAGE

• WXR/PWS toggle: Toggles the Weather Radar (WXR) and Predictive Windshear System (PWS) between AUTO and OFF. When set to OFF, the respective system display, warnings and audio alerts are disabled.
• TURB toggle: Toggles the Turbulence Detection (TURB) system between AUTO and OFF.
• MODE toggle:  Toggles the radar function between Weather display (WX) and ground mapping (MAP).*
• GAIN toggle: Toggles between AUTO or Manual (MAN) gain control for the WXR.*
• ELEVN/TILT Option List: Toggles between AUTO or Manual (MAN) control of elevation (ELEVN) mode or WXR tilt (TILT)*
  * = Not available in sim currently due to limitations of the sim weather API.

(Click to enlarge image)

CHANGING TAWS MODES - MFD SURV CONTROLS PAGE

• TERR SYS toggle: Toggles the terrain awareness and display (TERR) functions between ON and OFF. When set to OFF, the respective system display, warnings and audio alerts are disabled.
• GPWS toggle: Toggles the Ground Proximity Warning System (GPWS) functions between ON and OFF.
• G/S MODE toggle: Toggles the GPWS (Mode 5) function which monitors for excessive descent below the glide slope. When set to OFF, the respective system display, warnings and audio alerts are disabled.
• FLAP MODE toggle: Toggles the GPWS (Mode 4B) functions which monitors for appropriate flaps configuration at low altitude in landing phase. When set to OFF, the respective system display, warnings and audio alerts are disabled.

(Click to enlarge image)

RESET ALL SURV MODES TO DEFAULT SETTING - MFD SURV PAGE

When clicked, the DEFAULT SETTINGS button automatically sets all the WXR, TAWS, TCAS and XPDR settings to their default position on both MFDs. A confirmation dialog is necessary to confirm selection. For WXR and TAWS sections, when pressed,

• WXR/PWS system is set to AUTO
• TURB function is set to AUTO
• MODE function is set to WX
• GAIN function is set to AUTO
• ELEVN/TILT Option List is set to AUTO
• TERR SYS mode is set to ON
• GPWS system is set to ON
• G/S MODE system is set to ON
• FLAP MODE system is set to ON


(Click to enlarge image)
