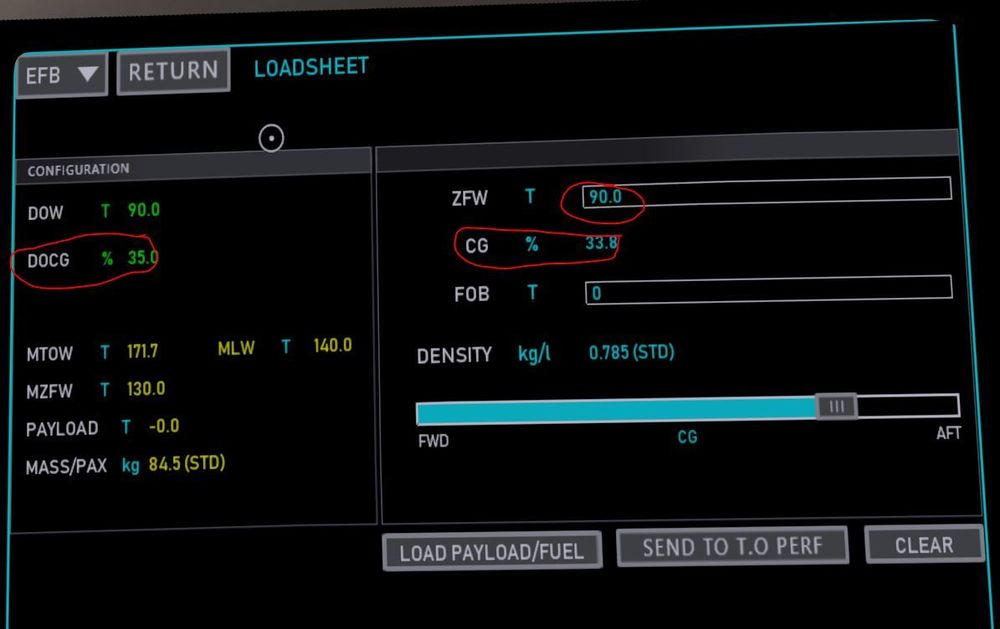

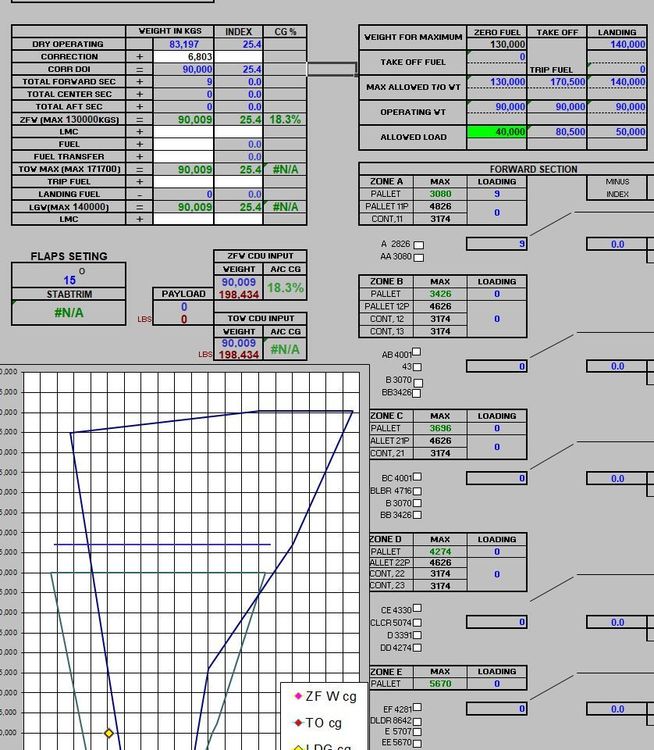

Guest Posted October 10, 2022 Share Posted October 10, 2022 (edited) Hi, I have been looking through my real world A306F weight and balance sheets. Both paper and digital. The real world A306F Dry Operating CG (DOCG) sits at 18.3% MAC. It's very nose heavy due to the large fwd main deck cargo door. We have to load ballast onto the aircraft if we wish to fly 'empty', as to bring the CG towards the aft. The Inibuilds A300 shows 35.0% MAC at DOCG (see below picture) and when you load those settings (No fuel - So ZFW as 90,000kgs) into the EFB, it sets the CG to 33.8% MAC. It's probably not a big deal at all, but I thought I would mention it. Cheers Matt Below - From my A306F software on my laptop. Edited October 10, 2022 by mattulong Link to comment Share on other sites More sharing options...
Guest Posted October 10, 2022 Share Posted October 10, 2022 Just read that back, and I think I explained myself badly on the following…. ‘‘The Inibuilds A300 shows 35.0% MAC at DOCG (see below picture) and when you load those settings (No fuel - So ZFW as 90,000kgs) into the EFB, it sets the CG to 33.8% MAC.’’ What I meant is, I set the zero fuel weight as the dry operating weight. As to see what the A300 EFB showed the DOCG as. I hope that makes more sense 😊 Link to comment Share on other sites More sharing options...
Guest Posted October 10, 2022 Share Posted October 10, 2022 (edited) Yep, me again. Sorry. Lol. I think I’ve worked it out. Does the Inibuilds A300 freighter have the same weight/CG setup as the passenger A300? It would explain a lot, as the A300 freighter dry operating weight tends to be around the 83,000kgs mark. The passenger A300 would be around 90,000kg mark, with seats, galleys, etc. With a higher weight, you would get a higher index. That in turn would probably generate a more aft CG. Edited October 10, 2022 by mattulong Link to comment Share on other sites More sharing options...
JoshF Posted October 10, 2022 Share Posted October 10, 2022 18 minutes ago, mattulong said: Yep, me again. Sorry. Lol. I think I’ve worked it out. Does the Inibuilds A300 freighter have the same weight/CG setup as the passenger A300? It would explain a lot, as the A300 freighter dry operating weight tends to be around the 83,000kgs mark. The passenger A300 would be around 90,000kg mark, with seats, galleys, etc. With a higher weight, you would get a higher index. That in turn would probably generate a more aft CG. Hi Matt, I can't remember off the top of my head if the manual contains this information you're looking for, and I'm not technically knowledged enough on the A306 to answer for sure from personal knowledge. I'll pass this along to the aircraft team Link to comment Share on other sites More sharing options...
Guest Posted October 11, 2022 Share Posted October 11, 2022 Thank you 😊 Link to comment Share on other sites More sharing options...
